Protection Type:
Surge

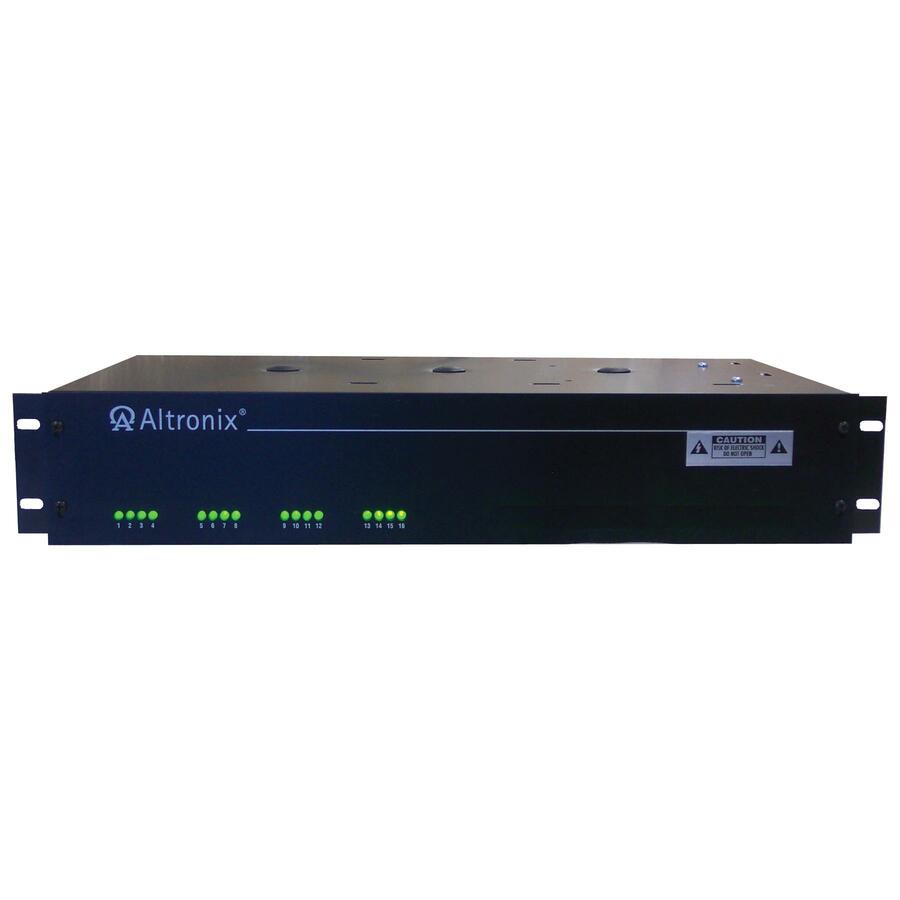

Altronix R2416UL Power Device
Part Number:
R2416UL
Model:
R2416UL
Altronix R2416UL Power Device Model Overview
Enhance your CCTV setup with the Altronix Rack Mount Series Power Supplies, specifically designed to support your surveillance camera needs. These UL Listed units deliver reliable 24VAC or 28VAC power through sixteen outputs, each protected by fuses or PTC. With models offering varying power capabilities, including options for 175VA, 300VA, and 600VA, you can ensure the optimal performance of your video equipment. Easy to install in standard EIA 19" racks, the power supplies come equipped with LED indicators to monitor operational status, making them an essential choice for robust security solutions.
Key Features
- Multiple Models: Available in 175VA, and 600VA power options.
- Sixteen Fuse or PTC Protected Outputs: For safer operation and reliability.
- UL Listed: Certified for use in the US and Canada for CCTV equipment.
- Easy Installation: Removable terminal blocks with locking screws ensure secure connections.
- Compact Design: Fits in standard 19” racks with dimensions of 3.25"H x 19.125"W x 8.5"D.
Specifications
- Input Voltage: 115VAC, 50/60Hz
- Output Voltage: 24VAC or 28VAC (factory set @ 24VAC)
- Current Ratings:
- R2416UL: 7 amp (175VA)
- R2416300UL: 12.5 amp (300VA) or 10 amp (280VA)
- R2416600UL: 25 amp (600VA) or 20 amp (560VA)
- Protection: Fuse Protected Outputs or PTC Protected Outputs
- Indicator Lights: Sixteen power LED indicators for each output
- Weight: Lightweight for easy handling and installation
Altronix R2416UL Power Device Overview
These Altronix Rack Mount CCTV Power Supplies provide 24VAC or 28VAC distributed via sixteen (16) fuse or PTC protected outputs for powering CCTV Cameras, heaters and other video accessories.
Technical Information
Power Description
Input Voltage Type:
AC
Input Voltage:
110 V AC
Output Voltage:
- 24 V AC
- 28 V AC
Output Voltage Detail:
- 24 V AC @ 7 A
- 28 V AC @ 6 A
Input Current:
3 A @ 110V
Output Current:
- 7 A
- 6 A
Interfaces/Ports
Plug/Connector:
On/Off Switch
Physical Characteristics
Form Factor:
Rack-mountable
Height:
3.3"
Width:
19.1"
Depth:
8.5"
Weight (Approximate):
17.15 lb
Miscellaneous
Compatibility:
- CCTV Cameras
- Heaters
- Video Accessories
Country of Origin:
United States
NDAA Compliant:
Yes
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN:
0782239936922
UPC:
782239936922
EAN:
0782239936922
UNSPSC:
39121004
Get help from a Barcoding Expert!
The Altronix R2416UL Power Device is also known as
ALT-R2416UL
