Protection Type:
Surge
Altronix R2416600UL Power Device
Part Number:
R2416600UL
Model:
Parts
Altronix Parts Accessory Model Overview
Products and parts from Altronix.

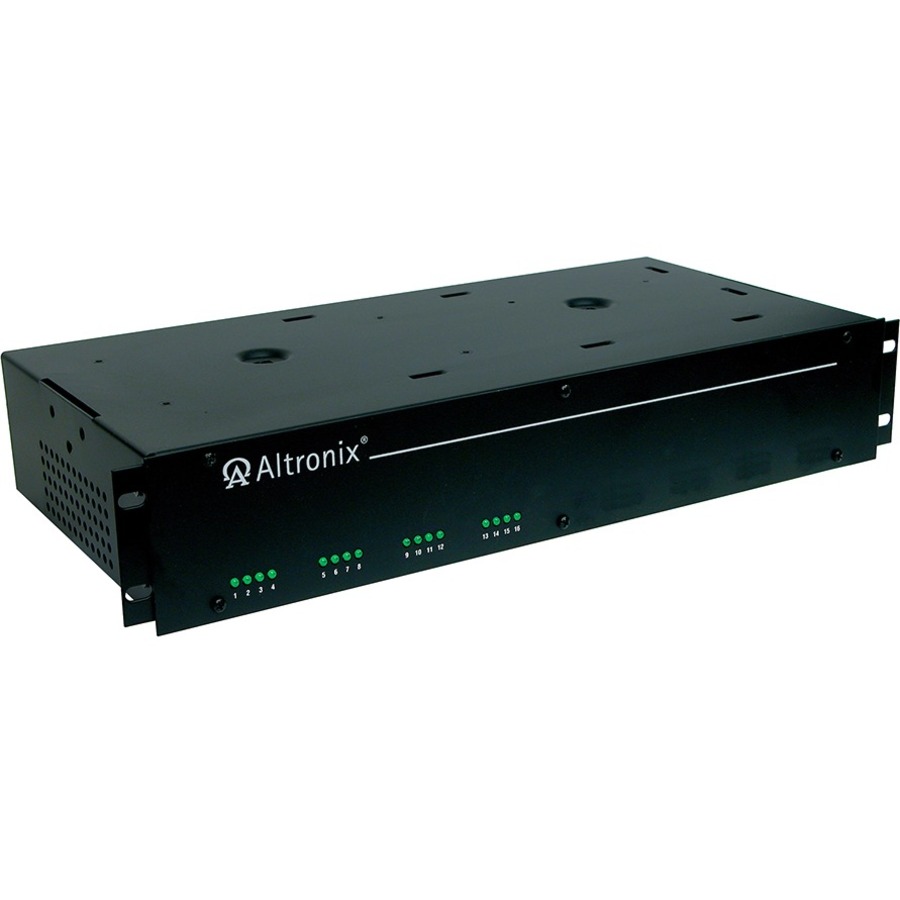

Altronix R2416600UL Power Device Overview
These Altronix Rack Mount CCTV Power Supplies provide 24VAC or 28VAC distributed via sixteen (16) fuse or PTC protected outputs for powering CCTV Cameras, heaters and other video accessories.
Technical Information
Power Description
Input Voltage Type:
AC
Input Voltage:
110 V AC
Output Voltage:
- 24 V AC
- 28 V AC
Output Voltage Detail:
- 24 V AC @ 25 A
- 28 V AC @ 20 A
Input Current:
6 A @ 110V
Output Current:
- 25 A
- 20 A
Interfaces/Ports
Plug/Connector:
On/Off Switch
Physical Characteristics
Form Factor:
Rack-mountable
Height:
3.3"
Width:
19.1"
Depth:
8.5"
Weight (Approximate):
23.70 lb
Miscellaneous
Compatibility:
- CCTV Cameras
- Heaters
- Video Accessories
Country of Origin:
United States
NDAA Compliant:
Yes
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN:
0782239938582, 4703876699724, 4703876699731
UPC:
782239938582
EAN:
0782239938582, 4703876699724, 4703876699731
UNSPSC:
39121004
Get help from a Barcoding Expert!
The Altronix R2416600UL Power Device is also known as
ALT-R2416600UL
