Protection Type:
Surge

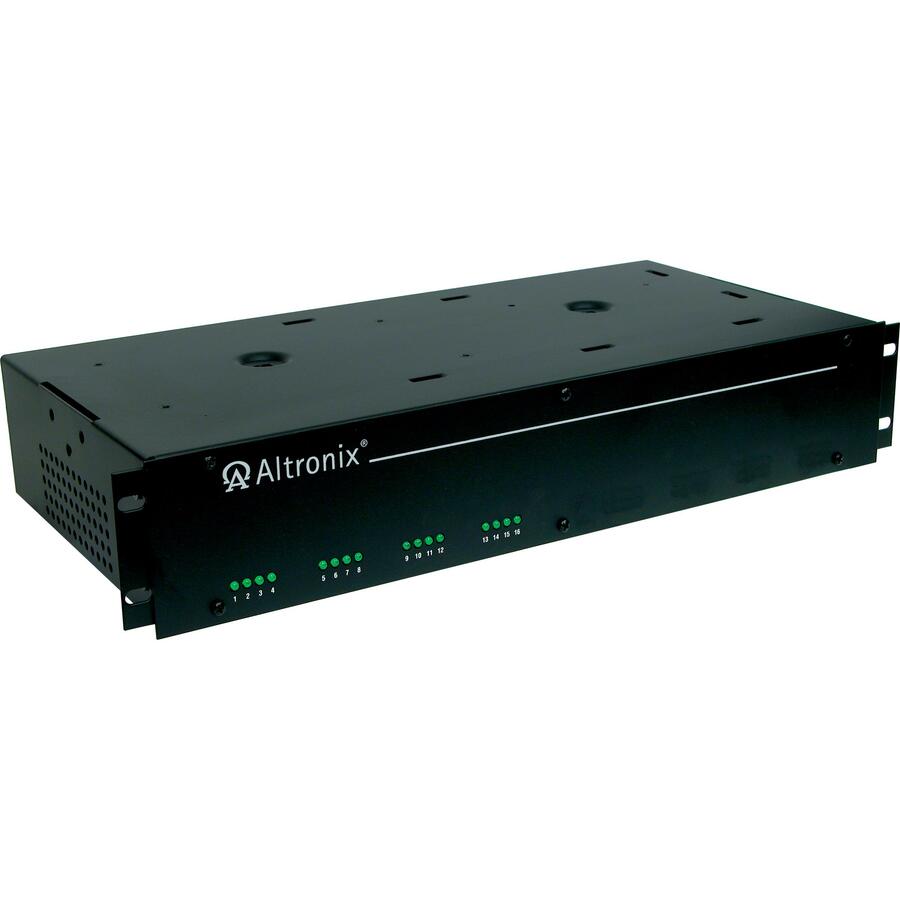

Altronix R2416300ULCB Power Device
Part Number:
R2416300ULCB
Model:
ALTV2416
Altronix ALTV2416 Accessory Model Overview
The Altronix ALTV2416 Power Supply provides 24VAC or 28VAC distributed via sixteen (16) fuse or PTC protected outputs for powering CCTV Cameras, heaters and other video accessories. It has a supply current of 24VAC @ 8 amp (200VA) or 28VAC @ 7 amp (200VA). Main fuse is rated @ 10 amp/250V. It has a power ON/OFF switch. ALTV2416 Power Supply's ease of installation saves time and eliminates costly labor.
Altronix R2416300ULCB Power Device Overview
These Altronix Rack Mount CCTV Power Supplies provide 24VAC or 28VAC distributed via sixteen (16) fuse or PTC protected outputs for powering CCTV Cameras, heaters and other video accessories.
Technical Information
Power Description
Input Voltage Type:
AC
Input Voltage:
110 V AC
Output Voltage:
- 24 V AC
- 28 V AC
Output Voltage Detail:
- 24 V AC @ 12.5 A
- 28 V AC @ 10 A
Input Current:
3 A @ 110V
Output Current:
- 12.50 A
- 10 A
Interfaces/Ports
Plug/Connector:
On/Off Switch
Physical Characteristics
Form Factor:
Rack-mountable
Height:
3.3"
Width:
19.1"
Depth:
8.5"
Weight (Approximate):
18.20 lb
Miscellaneous
Compatibility:
- CCTV Cameras
- Heaters
- Video Accessories
Country of Origin:
United States
NDAA Compliant:
Yes
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN:
0782239938179, 4703876699717
UPC:
782239938179
EAN:
0782239938179, 4703876699717
UNSPSC:
39121004
Get help from a Barcoding Expert!
The Altronix R2416300ULCB Power Device is also known as
ALT-R2416300ULCB
