Altronix PDS8 Accessory

Part Number: PDS8
Model: Parts
Add to My Shopping List Add to Compare
$51.96

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Receptacle Detail
8
Protection Type
Surge ProtectionFuse
Input Voltage Range
16 V AC - 28 V AC5 V DC - 24 V DC
Input Current
14 A

Product Description:

  8 Output Power Distribution Module - Two (2) AC or DC power input (5-24VDC up to 10A or 16-28 VAC up to 14A) into eight (8) fused selectable power outputs.
Explore all Altronix Parts Accessories
Add to Quote
Altronix PDS8 Accessory
Altronix PDS8 Accessory

Altronix Parts Accessory Model Overview

Products and parts from Altronix.
Altronix PDS8 Accessory Overview

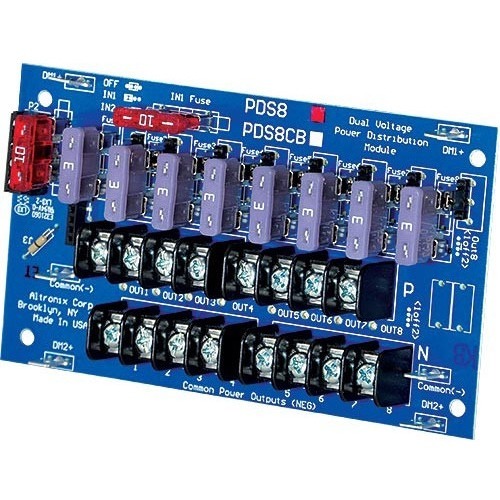

PDS8 dual input power distribution modules are designed to steer the power from either two (2) low voltage AC or DC power sources. This power is distributed over a total of eight (8) fused protected outputs.
Technical Information
Receptacle Detail:
8
Protection Type:
  • Surge Protection
  • Fuse
Power Description
Input Voltage Range:
  • 16 V AC - 28 V AC
  • 5 V DC - 24 V DC
Input Current:
14 A
Physical Characteristics
Height:
3"
Width:
1"
Length:
5.4"
Weight (Approximate):
6.40 oz
Miscellaneous
NDAA Compliant:
Yes
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN: 0782239954858
UPC: 782239954858
EAN: 0782239954858
UNSPSC: 39121017
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Altronix PDS8 Accessory is also known as ALT-PDS8
