Receptacles:
16
Altronix PD16W Accessory
Part Number:
PD16W
Model:
ALTV2416
Altronix ALTV2416 Accessory Model Overview
The Altronix ALTV2416 Power Supply provides 24VAC or 28VAC distributed via sixteen (16) fuse or PTC protected outputs for powering CCTV Cameras, heaters and other video accessories. It has a supply current of 24VAC @ 8 amp (200VA) or 28VAC @ 7 amp (200VA). Main fuse is rated @ 10 amp/250V. It has a power ON/OFF switch. ALTV2416 Power Supply's ease of installation saves time and eliminates costly labor.
Altronix PD16W Accessory Overview

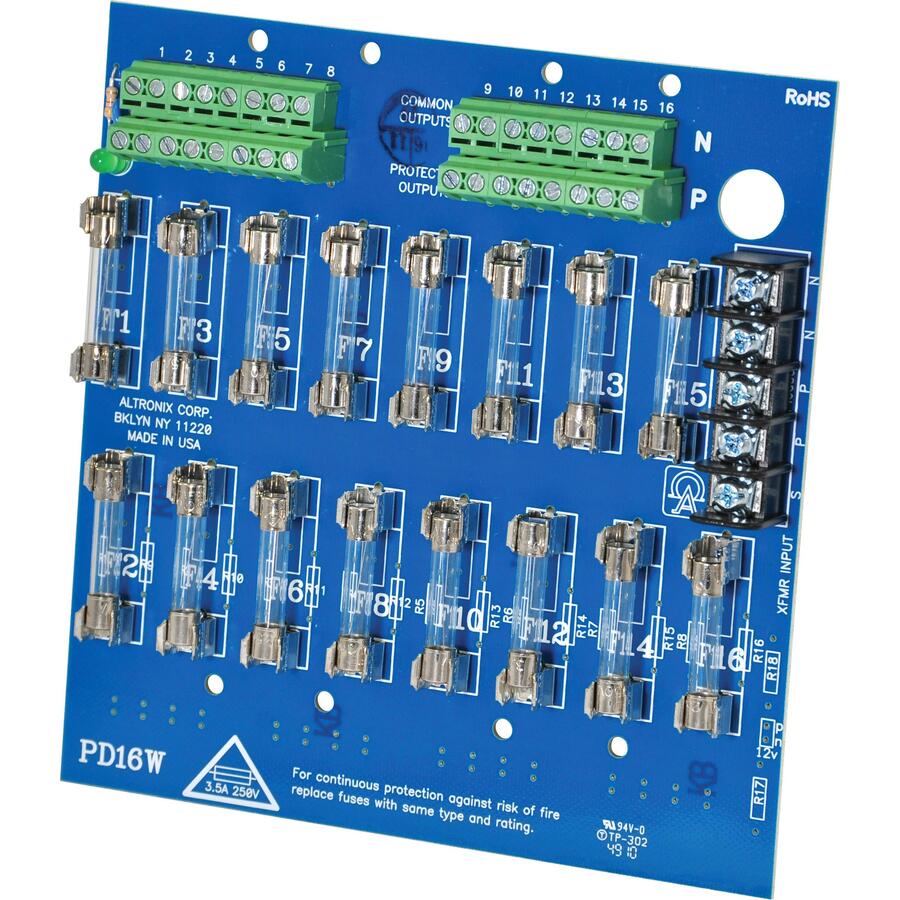

The PD16W power distribution module is designed to convert a single AC or DC input into sixteen (16) individually fuse protected outputs.
Technical Information
Power Description
Input Voltage:
- 24 V AC
- 28 V AC
- 12 V DC
- 24 V DC
Physical Characteristics
Height:
1"
Width:
6"
Length:
5.9"
Weight (Approximate):
8 oz
Miscellaneous
Certifications & Standards:
UL
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Country of Origin:
United States
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN:
0782239950560, 4703876699656
UPC:
782239950560
EAN:
0782239950560, 4703876699656
UNSPSC:
39121004
Get help from a Barcoding Expert!
The Altronix PD16W Accessory is also known as
ALT-PD16W
