Protection Type:
- Short Circuit
- Thermal Overload
Altronix OLS75 Power Device
Part Number:
OLS75
Model:
ALTV2416
Altronix ALTV2416 Accessory Model Overview
The Altronix ALTV2416 Power Supply provides 24VAC or 28VAC distributed via sixteen (16) fuse or PTC protected outputs for powering CCTV Cameras, heaters and other video accessories. It has a supply current of 24VAC @ 8 amp (200VA) or 28VAC @ 7 amp (200VA). Main fuse is rated @ 10 amp/250V. It has a power ON/OFF switch. ALTV2416 Power Supply's ease of installation saves time and eliminates costly labor.

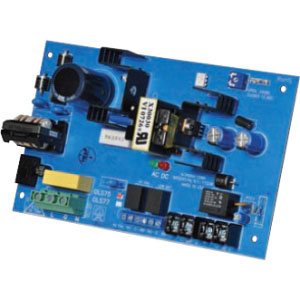

Altronix OLS75 Power Device Overview
OLS75 power supply/charger converts 115VAC, 60Hz or 230VAC, 50Hz input, into a 12VDC or 24VDC @ 2.5 amps of continuous supply current (see specifications). This general purpose power supply has a wide range of application for access control and security system accessories that require additional power.
Technical Information
Power Description
Number of +12V Rails:
1
Input Voltage Type:
AC
Input Voltage:
- 110 V AC
- 220 V AC
Input Voltage Range:
115 V AC - 230 V AC
Output Voltage:
- 12 V DC
- 24 V DC
Output Voltage Detail:
- 12 V DC @ 2.5 A
- 24 V DC @ 2.5 A
Input Current:
- 950 mA @ 110V
- 600 mA @ 220V
Output Current:
2.50 A
Interfaces/Ports
Plug/Connector:
On/Off Switch
Physical Characteristics
Height:
2.1"
Width:
4.1"
Depth:
7.5"
Miscellaneous
Package Contents:
- OLS75 Proprietary Power Supply
- Battery Leads
Compatibility:
- Access Control Panels
- Security Systems
Country of Origin:
United States
NDAA Compliant:
Yes
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN:
0782239933471
UPC:
782239933471
EAN:
0782239933471
UNSPSC:
39121004
Get help from a Barcoding Expert!
The Altronix OLS75 Power Device is also known as
ALT-OLS75
