Protection Type:
- Short Circuit
- Thermal Overload
Altronix OLS350 Power Device
Part Number:
OLS350
Model:
ALTV2416
Altronix ALTV2416 Accessory Model Overview
The Altronix ALTV2416 Power Supply provides 24VAC or 28VAC distributed via sixteen (16) fuse or PTC protected outputs for powering CCTV Cameras, heaters and other video accessories. It has a supply current of 24VAC @ 8 amp (200VA) or 28VAC @ 7 amp (200VA). Main fuse is rated @ 10 amp/250V. It has a power ON/OFF switch. ALTV2416 Power Supply's ease of installation saves time and eliminates costly labor.
Technical Information
Power Description
Input Voltage Type:
AC
Input Voltage:
110 V AC
Output Voltage:
24 V DC
Output Voltage Detail:
24 V DC @ 12 A
Input Current:
5 A @ 110V
Output Current:
12 A
Controls/Indicators
Status Indicators:
LEDs:
- AC input
- DC output
Interfaces/Ports
Plug/Connector:
On/Off Switch
Physical Characteristics
Form Factor:
Internal
Height:
1.8"
Width:
4.5"
Depth:
7.5"
Weight (Approximate):
1.10 lb
Miscellaneous
Package Contents:

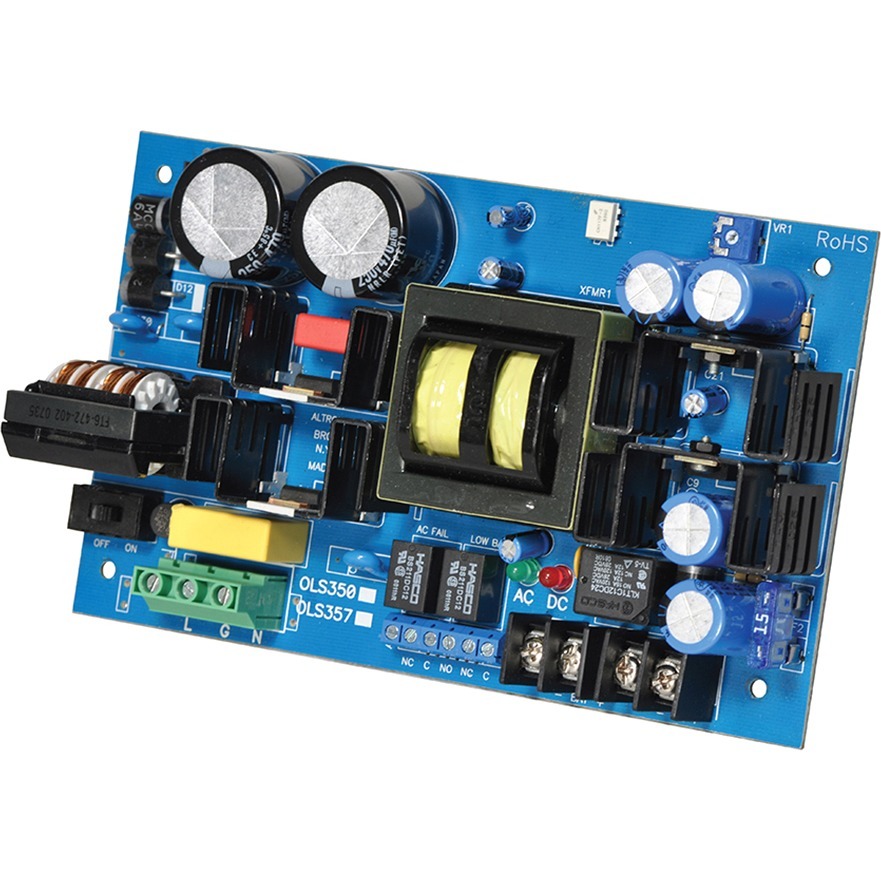

- Offline Switching Power Supply Board. 24VDC @ 12A
- Battery Leads
Compatibility:
Access Control and Security System
Country of Origin:
United States
NDAA Compliant:
Yes
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN:
0782239951611
UPC:
782239951611
EAN:
0782239951611
UNSPSC:
39121004
Get help from a Barcoding Expert!
The Altronix OLS350 Power Device is also known as
ALT-OLS350
