Protection Type:
- Short Circuit
- Thermal Overload
Altronix OLS180 Power Device
Part Number:
OLS180
Model:
ALTV2416
Altronix ALTV2416 Accessory Model Overview
The Altronix ALTV2416 Power Supply provides 24VAC or 28VAC distributed via sixteen (16) fuse or PTC protected outputs for powering CCTV Cameras, heaters and other video accessories. It has a supply current of 24VAC @ 8 amp (200VA) or 28VAC @ 7 amp (200VA). Main fuse is rated @ 10 amp/250V. It has a power ON/OFF switch. ALTV2416 Power Supply's ease of installation saves time and eliminates costly labor.

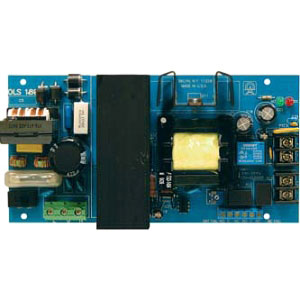

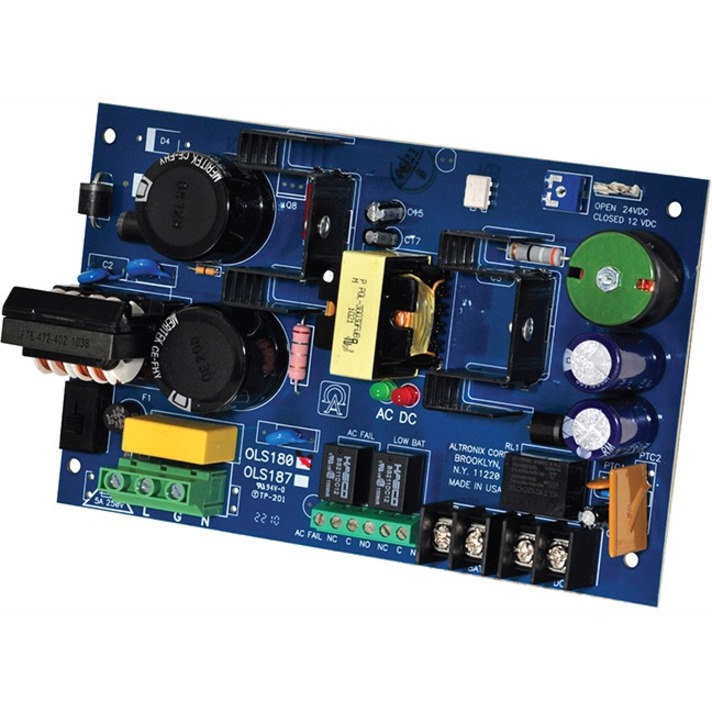

Altronix OLS180 Power Device Overview
This Altronix power supply/charger converts a 115VAC, 50/60Hz input, into a 12VDC or 24VDC output @ 6 amp continuous supply current (see specifications). This unit has a wide range of applications for access control and security system accessories that require additional power.
Technical Information
Power Description
Input Voltage Type:
AC
Input Voltage:
120 V AC
Output Voltage:
- 12 V DC @ 6 A
- 24 V DC @ 6 A
Input Current:
1.9 A @ 110V
Interfaces/Ports
Plug/Connector:
On/Off Switch
Physical Characteristics
Form Factor:
Board
Height:
1.8"
Width:
4.5"
Depth:
7.3"
Weight (Approximate):
1.10 lb
Miscellaneous
Package Contents:
- OLS180 Proprietary Power Supply
- Battery Leads
Compatibility:
Access Control and Security System
Environmentally Friendly:
Yes
Country of Origin:
United States
NDAA Compliant:
Yes
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN:
0782239933501
UPC:
782239933501
EAN:
0782239933501
UNSPSC:
39121004
Get help from a Barcoding Expert!
The Altronix OLS180 Power Device is also known as
ALT-OLS180
