Protection Type:
- Short Circuit
- Thermal Overload
Altronix OLS120D2X Security System Products
Part Number:
OLS120D2X
Model:
Parts
Altronix Parts Accessory Model Overview
Products and parts from Altronix.
Altronix OLS120D2X Security System Products Overview

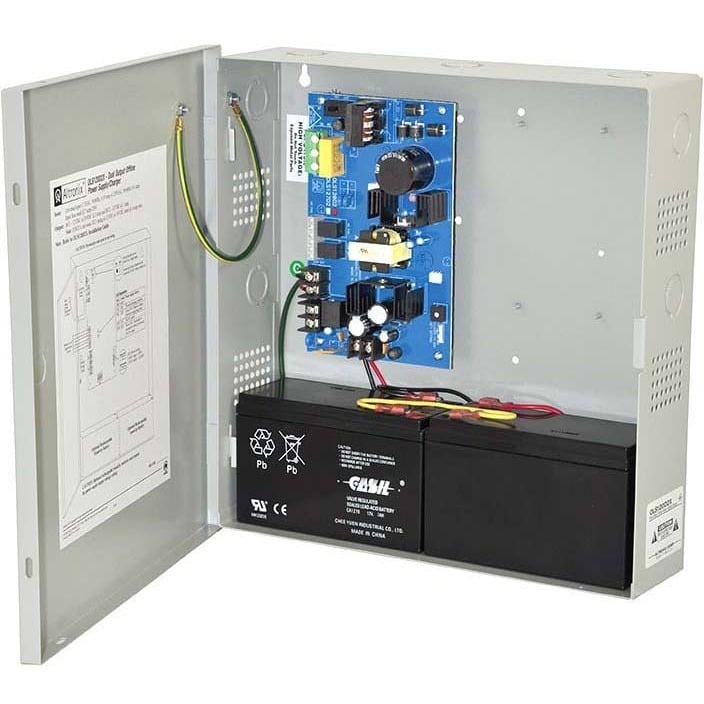

OLS120D2X dual output power supply/charger converts a 115VAC, 50/60Hz or 230VAC, 50/60Hz input to a 12VDC/24VDC output and a 12VDC fixed output (see specifications). This unit has a wide range of applications for access control and security system accessories that require additional power.
Technical Information
Power Description
Input Voltage Type:
AC
Input Voltage:
- 120 V AC
- 230 V AC
Output Voltage:
- 12 V DC
- 24 V DC
Output Voltage Detail:
- 12 V DC @ 3 A
- 12 V DC @ 1 A
- 24 V DC @ 3 A
Input Current:
- 950 mA @ 120V
- 600 mA @ 230V
Output Current:
- 3 A
- 1 A
Controls/Indicators
Status Indicators:
AC input and DC output LED indicators
Interfaces/Ports
Plug/Connector:
On/Off Switch
Physical Characteristics
Form Factor:
Rack-mountable
Height:
13.5"
Width:
13"
Depth:
3.3"
Weight (Approximate):
7.40 lb
Miscellaneous
Country of Origin:
United States
NDAA Compliant:
Yes
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN:
0782239952960
UPC:
782239952960
EAN:
0782239952960
UNSPSC:
39121004
Get help from a Barcoding Expert!
The Altronix OLS120D2X Security System Products is also known as
ALT-OLS120D2X
