Protection Type:
- Short Circuit
- Thermal Overload
Altronix OLS120D2 Accessory
Part Number:
OLS120D2
Model:
Parts
Altronix Parts Accessory Model Overview
Products and parts from Altronix.
Altronix OLS120D2 Accessory Overview

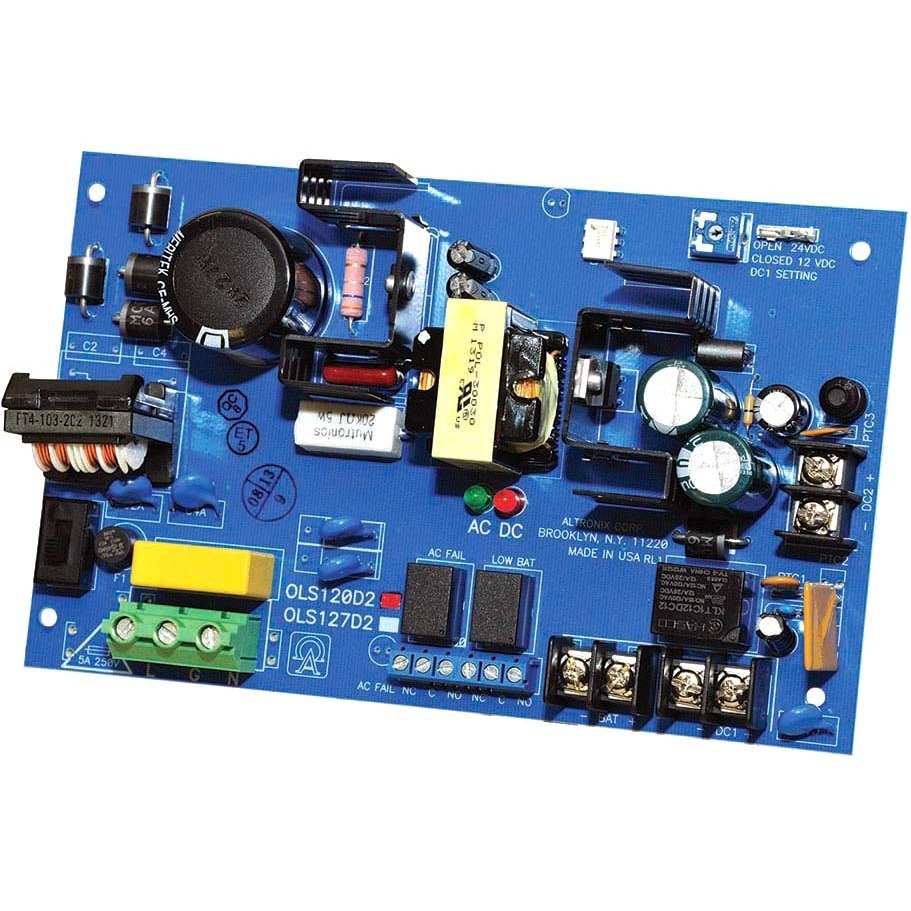

OLS120D2 power supply/charger converts a 115VAC, 50/60Hz or 230VAC, 50/60Hz input to a 12VDC and 24VDC outputs (see specifications). This unit has a wide range of applications for access control and security system accessories that require additional power.
Technical Information
Power Description
Input Voltage Type:
AC
Input Voltage:
- 120 V AC
- 230 V AC
Output Voltage:
- 12 V DC
- 24 V DC
Output Voltage Detail:
- 12 V DC @ 3 A
- 12 V DC @ 1 A
- 24 V DC @ 3 A
Input Current:
- 950 mA @ 120V
- 600 mA @ 230V
Output Current:
- 3 A
- 1 A
Controls/Indicators
Status Indicators:
AC input and DC output LED indicators
Interfaces/Ports
Plug/Connector:
On/Off Switch
Physical Characteristics
Height:
1.8"
Width:
4.5"
Depth:
7.3"
Weight (Approximate):
11.20 oz
Miscellaneous
Package Contents:
- Proprietary Power Supply
- Battery Leads
NDAA Compliant:
Yes
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
Lifetime
Item Numbers
UNSPSC:
39121004
