Altronix NETWAYSP8WPX Security System Products

Altronix - Altronix NetWaySP8WPX Ethernet Switch - 8 Ports - Manageable - 2 Layer Supported - Modular - Twisted Pair, Optical Fiber - Pole Mount, Enclosure - Lifetime Limited Warranty
  • Two (2) Gigabit SFP ports.
  • 115W total power: Eight (8) PoE/PoE+ (up to 30W) ports or two (2) Hi-PoE (60W) ports.
  • Two (2) 10/100/1000 Mbps ports.
  • Six (6) 10/100 Mbps ports.
  • IEEE 802.3at (30W), IEEE 802.3af (15W) compliant, or Hi-PoE (60W).
  • PoE activity LED indicators.
  • Automatic switch over to stand-by battery when AC fails.
  • UL Listed in the U.S. and Canada.
  • CE Approved.
  • Lifetime Warranty / Made in the U.S.A.
Read More

Need a different version? See all Altronix Parts Accessories

$1,557.15
Add to Quote
Add to My Shopping List Add to Compare
Altronix NETWAYSP8WPX Security System Products
Altronix NETWAYSP8WPX Security System Products
Altronix NETWAYSP8WPX Security System Products
Altronix Parts Accessory Model Overview
Products and parts from Altronix.
Altronix NETWAYSP8WPX Security System Products Overview

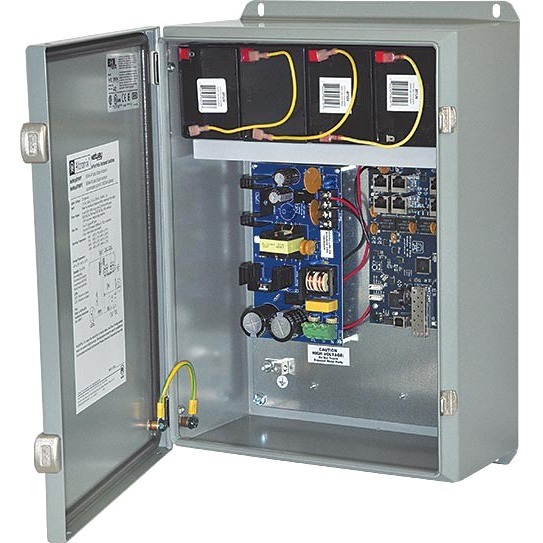

Altronix NetWaySP8WPX Outdoor PoE+ Hardened Switch provides two (2) 1Gb SFP (Fiber) ports and eight (8) PoE+ (30W) or two (2) Hi-PoE (60W) ports, passing data for PoE/PoE+/Hi-PoE compliant devices. Cameras/edge devices may be located up to 100m from the unit. Embedded LINQ Technology allows you to monitor, control and report power and diagnostics from anywhere.

Interfaces/Ports
Total Number of Network Ports:
8
Uplink Port:
No
Modular:
Yes
Stack Port:
No
Port/Expansion Slot Details:
  • 6 x Fast Ethernet Network
  • 2 x Gigabit Ethernet Network
  • 2 x Gigabit Ethernet Expansion Slot
Media & Performance
Media Type Supported:
  • Twisted Pair
  • Optical Fiber
Ethernet Technology:
  • Gigabit Ethernet
  • Fast Ethernet
Network Technology:
  • 1000Base-X
  • 10/100Base-T
  • 10/100/1000Base-T
I/O Expansions
Number of Total Expansion Slots:
2
Expansion Slot Type:
SFP
Shared SFP Slot:
No
Number of SFP Slots:
2
Network & Communication
Layer Supported:
2
Management & Protocols
Manageable:
Yes
Power Description
Power Source:
Power Supply
Redundant Power Supply Supported:
No
Physical Characteristics
Form Factor:
  • Pole Mount
  • Enclosure
Height:
17.4"
Width:
12"
Depth:
6.5"
Weight (Approximate):
21.50 lb
Miscellaneous
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Country of Origin:
United States
NDAA Compliant:
Yes
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN: 0782239955398
UPC: 782239955398
EAN: 0782239955398
UNSPSC: 43222612
