Altronix NETWAYSP8WPN Security System Products

Altronix - 8pt Fiber Med Conv/2SFPart#EMA4
  • Two (2) Gigabit SFP ports.
  • 115W total power: Eight (8) PoE/PoE+ (up to 30W) ports or two (2) Hi-PoE (60W) ports.
  • Two (2) 10/100/1000 Mbps ports.
  • Six (6) 10/100 Mbps ports.
  • IEEE 802.3at (30W), IEEE 802.3af (15W) compliant, or Hi-PoE (60W).
  • PoE activity LED indicators.
  • VLAN (Virtual Local Area Networks) subnetwork allows for the grouping together of devices for improved network traffic and higher security.
  • UL Listed in the U.S. and Canada.
  • CE Approved.
  • Lifetime Warranty / Made in the U.S.A.
Read More

Need a different version? See all Altronix Parts Accessories

$1,382.28
Add to Quote
Add to My Shopping List Add to Compare
Altronix NETWAYSP8WPN Security System Products
Altronix NETWAYSP8WPN Security System Products
Altronix NETWAYSP8WPN Security System Products
Altronix Parts Accessory Model Overview
Products and parts from Altronix.
Altronix NETWAYSP8WPN Security System Products Overview

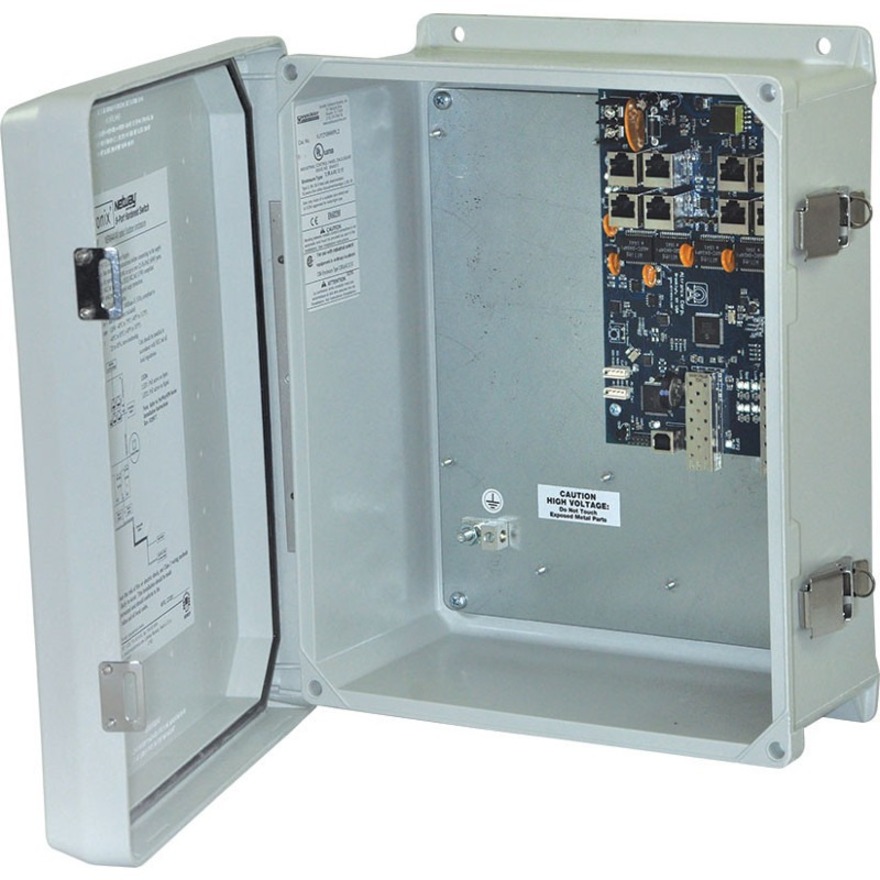

Altronix NetWaySP8WPN PoE+ Outdoor Hardened Switch provides two (2) 1Gb SFP (Fiber) ports and eight (8) PoE+ (30W) or two (2) Hi-PoE (60W) ports (external 48-55V UL Listed ITE power supply required), passing data for PoE/PoE+/Hi-PoE compliant devices. Cameras/edge devices may be located up to 100m from the unit. Embedded LINQ Technology allows you to monitor, control, and report power and diagnostics from anywhere.
Interfaces/Ports
Total Number of Network Ports:
8
Modular:
Yes
Network (RJ-45):
Yes
Port/Expansion Slot Details:
  • 6 x Fast Ethernet PoE+
  • 2 x Gigabit Ethernet Expansion Slot
  • 2 x Gigabit Ethernet PoE+
Media & Performance
Media Type Supported:
  • Twisted Pair
  • Optical Fiber
Ethernet Technology:
  • Gigabit Ethernet
  • Fast Ethernet
Network Technology:
  • 10/100/1000Base-T
  • 100/1000Base-X
  • 10/100Base-T
I/O Expansions
Number of Total Expansion Slots:
2
Expansion Slot Type:
SFP (mini-GBIC)
Number of SFP Slots:
2
Network & Communication
Layer Supported:
2
Networking Standards:
  • IEEE 802.3at
  • IEEE 802.3af
  • IEEE 802.1Q
Power Description
PoE (RJ-45) Port:
Yes
PoE Budget:
115 W
Power Source:
Power Supply
Physical Characteristics
Form Factor:
  • Enclosure
  • Pole Mount
Height:
13.3"
Width:
11.3"
Depth:
5.6"
Weight (Approximate):
9.50 lb
Miscellaneous
Country of Origin:
United States
NDAA Compliant:
Yes
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN: 0782239955435
UPC: 782239955435
EAN: 0782239955435
UNSPSC: 43222612
