Altronix NETWAYSP1BTWP Accessory

Altronix - 802.3BT (4PPOE) INJ/OUTDOOR
  • Single PoE port provides up to 90W for high PoE illuminators, lighting, PTZ cameras, etc.
  • Gigabit SFP port.
  • 10/100/1000 Mbps data port.
  • IEEE 802.3bt (90W), IEEE 802.3at (30W) and IEEE 802.3af (15W) compliant.
  • Built-in battery charger
  • Lifetime Warranty / Made in the U.S.A.
  • NEMA 4/4X, IP66-11 Rated enclosure for outdoor use
Read More

Need a different version? See all Altronix Parts Accessories

$735.92
In Stock
Add to Quote
Add to My Shopping List Add to Compare
Altronix NETWAYSP1BTWP Accessory
Altronix NETWAYSP1BTWP Accessory
Altronix NETWAYSP1BTWP Accessory
Altronix Parts Accessory Model Overview
Products and parts from Altronix.
Altronix NETWAYSP1BTWP Accessory Overview

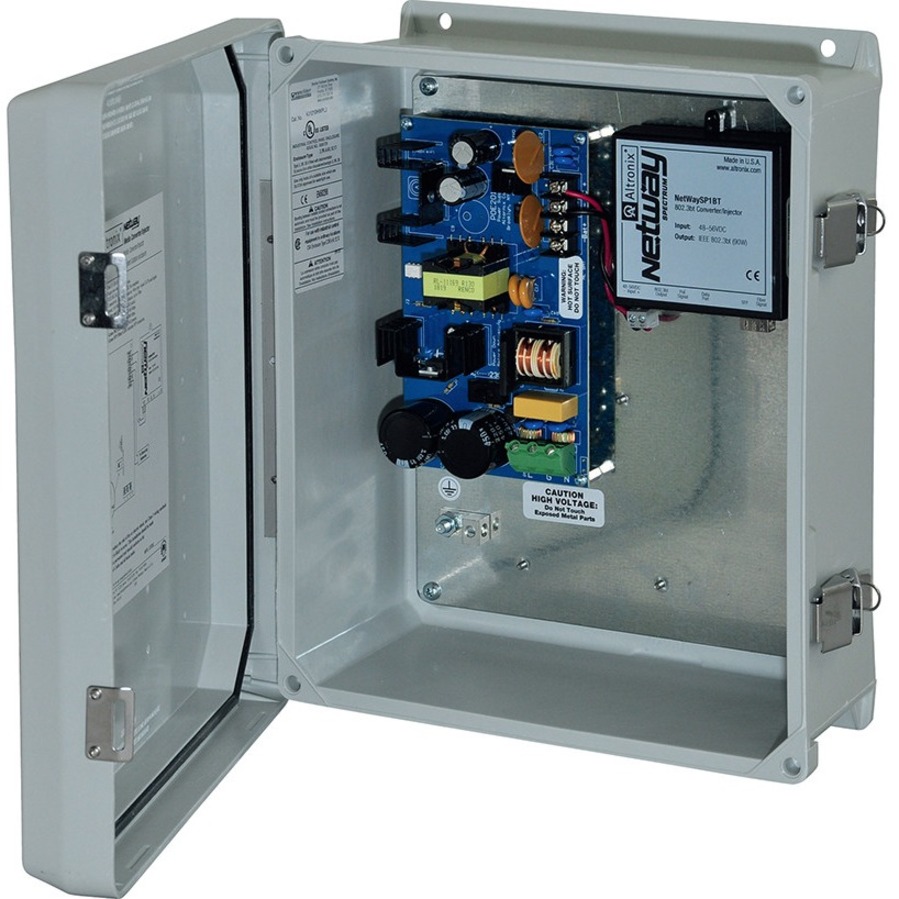

Altronix NetWaySP1BTWP Outdoor 802.3bt media converter/injector provides a single 802.3bt (4PPoE) port up to 90W and accommodates Fiber (1000Base-X/SX/ LX) or structured cable to transmit data. Units can be deployed with structured cable, conventional single/multimode fiber or composite cable (fiber + copper combined). Cameras/edge devices may be located up to 100m from the unit.
Interfaces/Ports
Total Number of Ports:
2
Network (RJ-45):
Yes
Number of PoE (RJ-45) Ports:
1
PoE Port Type:
PSE
Media & Performance
Media Type Supported:
  • Optical Fiber
  • Twisted Pair
Fiber Mode Supported:
  • Single-mode
  • Multi-mode
Maximum Distance Supported:
328.08 ft
I/O Expansions
Number of Total Expansion Slots:
1
Expansion Slot Type:
SFP (mini-GBIC)
Number of SFP Slots:
1
Network & Communication
Ethernet Technology:
Gigabit Ethernet
Network Technology:
  • 10/100/1000Base-T
  • 1000Base-SX/LX
Power Description
Power Source:
AC
Physical Characteristics
Form Factor:
Pole
Height:
13.3"
Width:
11.3"
Depth:
5.6"
Weight (Approximate):
10.50 lb
Miscellaneous
Country of Origin:
United States
Warranty
Limited Warranty:
Lifetime
Item Numbers
UNSPSC: 43201553
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Altronix NETWAYSP1BTWP Accessory is also known as ALT-NETWAYSP1BTWP
