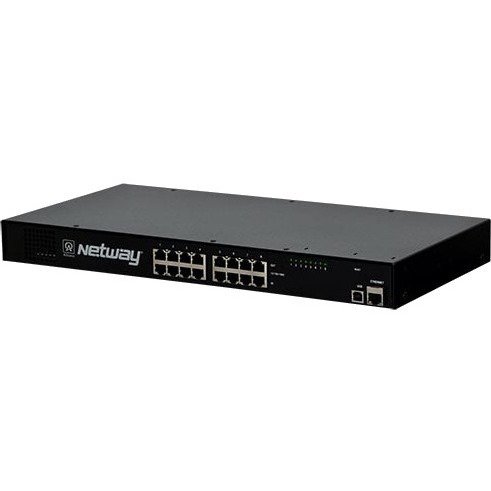

Altronix NETWAY8G Power Device

Altronix - Altronix NetWay8G PoE Injector - 120 V AC, 230 V AC Input - 55 V DC Output - 1 10/100/1000Base-T Input Port(s) - 8 10/100/1000Base-T Output Port(s) - 240 W - 1U

IEEE 802.3af (15W) and IEEE 802.3at (30W) compliant.
Eight (8) ports for cameras/edge devices over ethernet.
Speed: 10/100/1000 Mbps.
30W maximum power per port.
Port status LEDs.
Auto detection and protection of legacy non-PoE cameras/devices.
Real-time power diagnostics with e-mail and Windows Dashboard Alert notifications.
Local and/or remote access to critical information via LAN/WAN.
Event Log tracks history.
Built-in IP networked management allows for remote camera reset and monitoring.
Built-in battery charger.
UL Listed in the U.S. and Canada.
CE Approved.
Lifetime Warranty / Made in the U.S.A.

Need a different version? See all Altronix Parts Accessories

$764.95

Add to Quote

Overview

Altronix Parts Accessory Model Overview

Products and parts from Altronix.

Altronix NETWAY8G Power Device Overview

Altronix NetWay8G is an 8 port networked Managed Midspan in a 1U rack enclosure. It provides PoE/PoE+ (up to 30W) power per port, and passes data at 10/100/1000 mbps at distances up to 100m. Ethernet network distance can be extended up to 1000m using Altronix NetwayXT or NetwayXTX repeaters or Altronix Pace series Ethernet extenders. The unit incorporates a battery charger for installations requiring battery backup. Typical applications include Ethernet cameras and edge devices. PoE power management and monitoring is controlled through the unit's LINQ™ - based technology networked management port.

Detailed Specs

Technical Information

Protection Type:

Short Circuit

Power Description

Input Voltage:

120 V AC
230 V AC

Maximum Output Voltage:

55 V DC

Minimum Input Current:

1.80 A

Maximum Input Current:

3 A

Minimum Frequency:

50 Hz

Maximum Frequency:

60 Hz

Maximum Output Power:

240 W

Interfaces/Ports

Input Ports:

1 x 10/100/1000Base-T

Output Ports:

8 x 10/100/1000Base-T

Physical Characteristics

Form Factor:

Rack Mountable

Rack Height:

Height:

1.6"

Width:

19.1"

Depth:

8.5"

Weight (Approximate):

6.17 lb

Miscellaneous

Compatibility:

Network Switch
Network Camera

Certifications & Standards:

CE
UL/cUL
IEEE 802.3af
IEEE 802.3at

Environmentally Friendly:

Yes

Country of Origin:

United States

NDAA Compliant:

Yes

Warranty

Limited Warranty:

Lifetime

Item Numbers

GTIN: 0782239954544

UPC: 782239954544

EAN: 0782239954544

UNSPSC: 39121004
