Altronix NETWAY1XP Accessory

Part Number: NETWAY1XP
Model: Parts
to get Free Ground Shipping on your order.
Add to My Shopping List Add to Compare
$105.05

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Input Voltage
24 V AC24 V DC
Maximum Input Current
1.50 A
Maximum Output Power
30 W
Input Ports
1 x 10/100Base-TX

Product Description:

  Altronix NetWay1XP Power over Ethernet Injector - 24 V AC, 24 V DC Input - 1 10/100Base-TX Input Port(s) - 1 10/100Base-TX Output Port(s) - 30 W
Explore all Altronix Parts Accessories
Add to Quote
Altronix NETWAY1XP Accessory
Altronix NETWAY1XP Accessory

Altronix Parts Accessory Model Overview

Products and parts from Altronix.
Altronix NETWAY1XP Accessory Overview
NetWay1X is a single port midspan PoE/PoE+ compliant power injector which provides power and passes data (e.g. video) for PoE/PoE+ compliant devices. Devices may be located up to 100m (328 ft.) from NetWay1X. A NetWayXTX repeater module can be utilized to extend the distance an additional100m (328 ft.) for a total range of up to 200m (656 ft.). A maximum range of 600m (1968 ft.) is possible using multiple repeaters, based on device port requirement. NetWay1X is capable of supporting non-PoE compliant fixed IP cameras by utilizing NetWay1512 adapter.
Power Description
Input Voltage:
  • 24 V AC
  • 24 V DC
Maximum Input Current:
1.50 A
Maximum Output Power:
30 W
Interfaces/Ports
Input Ports:
1 x 10/100Base-TX
Output Ports:
1 x 10/100Base-TX
Physical Characteristics
Height:
1"
Width:
3.5"
Depth:
3.5"
Weight (Approximate):
1.50 lb
Miscellaneous
Package Contents:

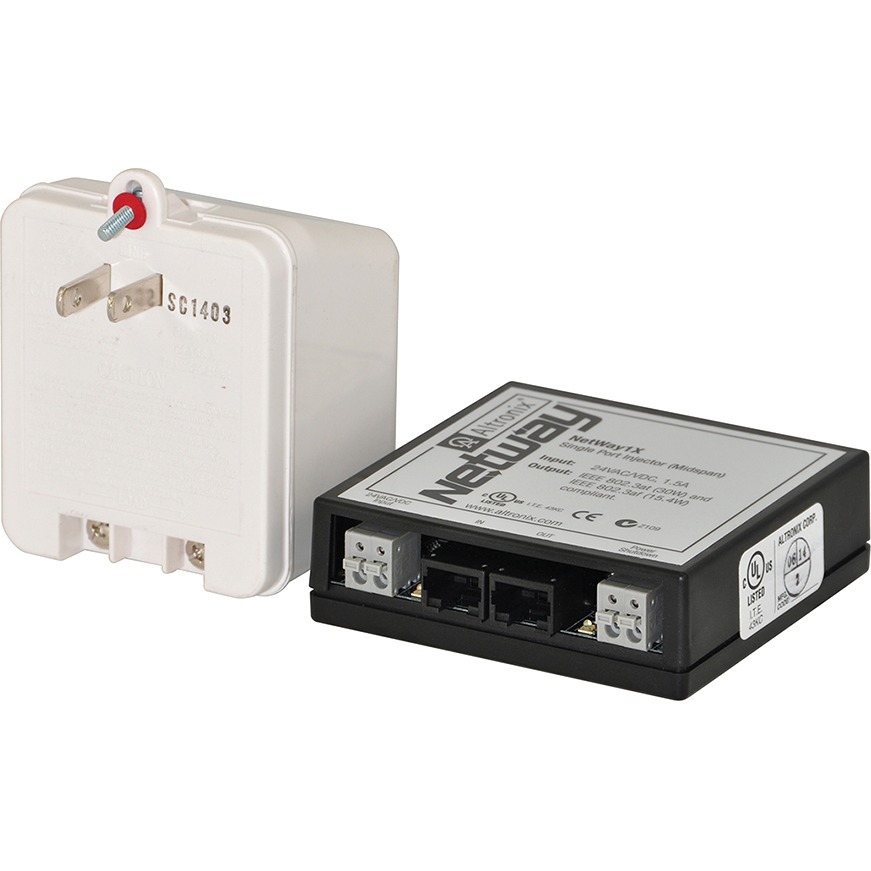

  • NetWay1XP Power over Ethernet Injector
  • 1 x TP2440 Plug-in Transformer
Additional Information:
Port Status LEDs
Compatibility:
IP Cameras
Certifications & Standards:
  • IEEE 802.3at
  • IEEE 802.3af
  • UL
  • cULus
  • CE
Environmentally Friendly:
Yes
Country of Origin:
United States
NDAA Compliant:
Yes
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN: 0782239952922, 4703876698697
UPC: 782239952922
EAN: 0782239952922, 4703876698697
UNSPSC: 39121004
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Altronix NETWAY1XP Accessory is also known as ALT-NETWAY1XP
