Altronix MOM5 Power Device

Part Number: MOM5
Model: ALTV2416
to get Free Ground Shipping on your order.
$53.15

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Height
5.3"
Width
3.5"
Depth
1"
Additional Information
12VDC or 24VDC selectable outputCurrent limit is 2 ampFive (5) PTC protected outputsClass 2 Rated power limited outputsProvides power for fail safe and/or fail secure locking devicesFire Alarm Panel or Access Control System trigger inputsNO or NC supervised trigger input and polarity reversal trigger input (.4 amp draw from FACP)Red LED's indicate condition of each power outputPower & input trigger LED's

Product Description:

  UL RECOGNIZED MULTI-OUTPUT POWER DISTRIBUTION MODULE. FIVE (5) INDIVIDUALLY PTC PROTECTED CLASS 2 RATED POWER LIMITED O

Altronix ALTV2416 Accessory Model Overview

The Altronix ALTV2416 Power Supply provides 24VAC or 28VAC distributed via sixteen (16) fuse or PTC protected outputs for powering CCTV Cameras, heaters and other video accessories. It has a supply current of 24VAC @ 8 amp (200VA) or 28VAC @ 7 amp (200VA). Main fuse is rated @ 10 amp/250V. It has a power ON/OFF switch. ALTV2416 Power Supply's ease of installation saves time and eliminates costly labor.

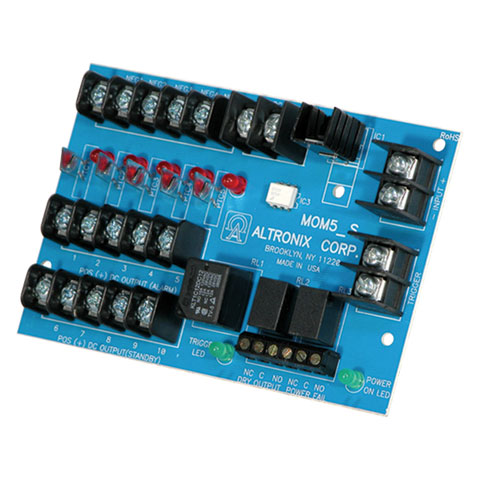

Altronix MOM5 Power Device Overview

The MOM5 multi output power distribution module converts one (1) non-power limited DC voltage input to five (5) power limited outputs. Each output will route power to a variety of access control hardware and devices which includes Mag Locks, Electric Strikes, Magnetic Door Holders, etc. These outputs will operate in both fail-safe and fail-secure modes. Controlled trigger input is achieved through normally open (N.O.) or normally closed (N.C.) supervised input or the polarity reversal from an FACP (Fire Alarm Control Panel). A form "C" dry output relay will enable HVAC Shutdown, Elevator Recall or trigger auxiliary devices.

Physical Characteristics
Height:
5.3"
Width:
3.5"
Depth:
1"
Miscellaneous
Additional Information:
  • 12VDC or 24VDC selectable output
  • Current limit is 2 amp
  • Five (5) PTC protected outputs
  • Class 2 Rated power limited outputs
  • Provides power for fail safe and/or fail secure locking devices
  • Fire Alarm Panel or Access Control System trigger inputs
  • NO or NC supervised trigger input and polarity reversal trigger input (.4 amp draw from FACP)
  • Red LED's indicate condition of each power output
  • Power & input trigger LED's
Compatibility:
  • Mag Locks
  • Electric Strikes
  • Magnetic Door Holders
Country of Origin:
United States
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN: 0782239930975, 0792277361433
UPC: 782239930975, 792277361433
EAN: 0782239930975, 0792277361433
UNSPSC: 39121900
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Altronix MOM5 Power Device is also known as ALT-MOM5
