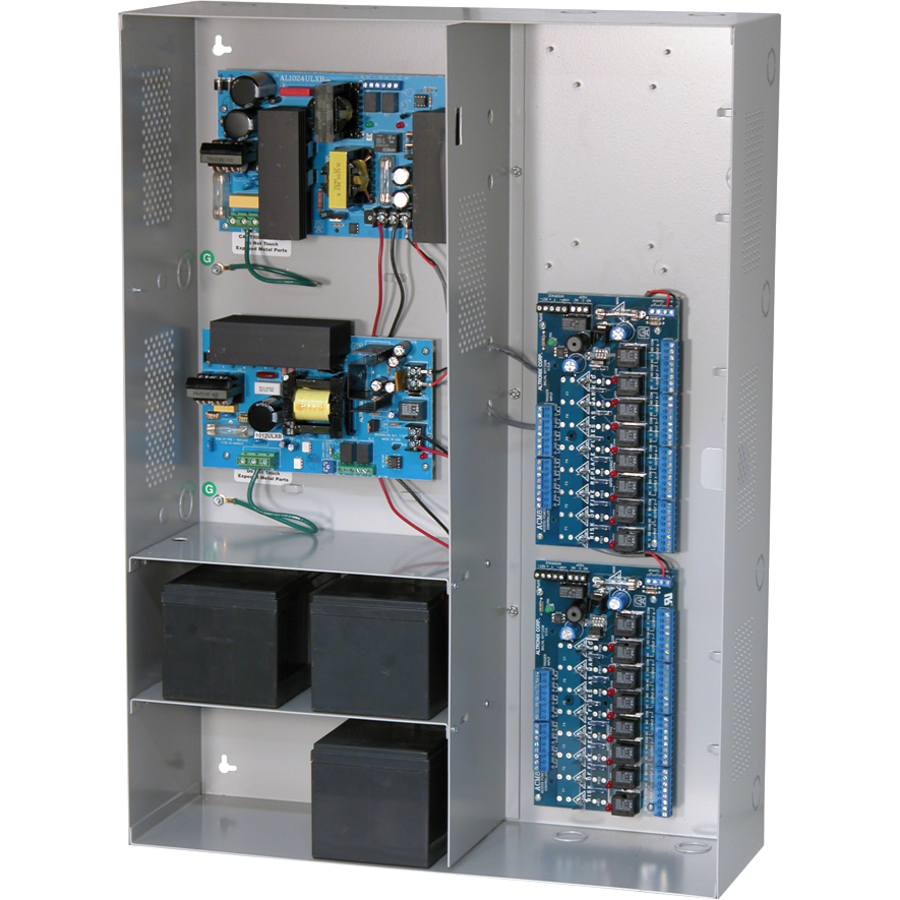

Altronix MAXIMAL75D Power Device

Part Number: MAXIMAL75D

Model: ALTV2416

$1,287.14

In Stock

Price Match Guarantee - We'll match any authorized retailer's price i

Quantity:

Product Highlights

View All

Input Voltage

120 V AC

Output Voltage

12 V DC24 V DC

Output Voltage Detail

12 V DC @ 9.5 A24 V DC @ 9.7 A

Output Current

9.50 A9.70 A

Product Description:

2 POWER SUPPLY/CHARGER WITH AC CESS POWER CONTROLLERS

Explore all Altronix ALTV2416 Accessories

Add to Quote

Overview

Altronix ALTV2416 Accessory Model Overview

The Altronix ALTV2416 Power Supply provides 24VAC or 28VAC distributed via sixteen (16) fuse or PTC protected outputs for powering CCTV Cameras, heaters and other video accessories. It has a supply current of 24VAC @ 8 amp (200VA) or 28VAC @ 7 amp (200VA). Main fuse is rated @ 10 amp/250V. It has a power ON/OFF switch. ALTV2416 Power Supply's ease of installation saves time and eliminates costly labor.

Altronix MAXIMAL75D Power Device Overview

Maximal75D distributes and switches power to access control systems and accessories. Unit converts a 115VAC 60Hz input into sixteen (16) independently controlled 12VDC and 24VDC Class 2 Rated PTC protected power-limited outputs. The outputs are activated by an open collector sink or normally open (NO) dry trigger input from an Access Control System, Keypad, Push Button, REX PIR, etc. Units will route power to a variety of access control hardware devices including: Mag Locks, Electric Strikes, Magnetic Door Holders, etc. Outputs will operate in both Fail-Safe and/or Fail-Secure modes. The FACP Interface enables Emergency Egress, Alarm Monitoring, or may be used to trigger other auxiliary devices. The fire alarm disconnect feature is individually selectable for any or all of the sixteen (16) outputs.

Detailed Specs

Power Description

Input Voltage:

120 V AC

Output Voltage:

12 V DC
24 V DC

Output Voltage Detail:

12 V DC @ 9.5 A
24 V DC @ 9.7 A

Output Current:

9.50 A
9.70 A

Physical Characteristics

Form Factor:

Enclosure

Height:

26"

Width:

19"

Depth:

6.3"

Weight (Approximate):

33 lb

Miscellaneous

Package Contents:

1 x Enclosure, 26"H x 19"W x 6.25"D, Grey, 19 Gauge, Indoor
1 x Power Supply Charger, Single Fused Output, 12VDC @ 10A, 115VAC, Board
1 x Power Supply Charger, 24VDC @ 10A, Board
2 x Access Power Controller, 8 PTC Class 2 Relay Outputs, FAI, Board

Compatibility:

Access Control Devices:

Mag Lock
Electric Strike
Magnetic Door Holder

NDAA Compliant:

Yes

Environmentally Friendly:

Yes

Environmental Compliance:

Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty:

Lifetime

Item Numbers

GTIN: 0782239947621

UPC: 782239947621

EAN: 0782239947621

UNSPSC: 39121004
