Protection Type:
- Short Circuit
- Thermal Overload
Altronix MAXIMAL55E Accessory
Part Number:
MAXIMAL55E
Model:
Parts
Altronix Parts Accessory Model Overview
Products and parts from Altronix.

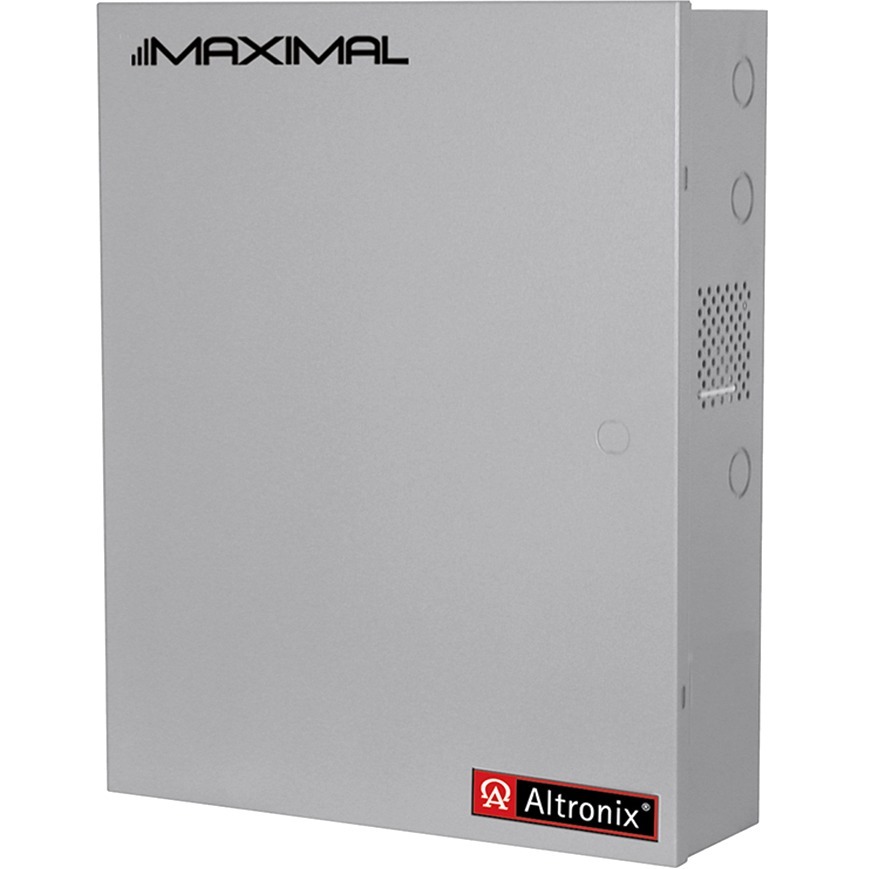

Altronix MAXIMAL55E Accessory Overview
This unit provides system designers and installers with "maximum" power choices and the highest levels of versatility. It provides 12VDC simultaneously via two (2) single output power supply/chargers. It includes AC fail, low battery and battery presence monitoring. Optional Altronix field installable sub-assemblies provide multiple outputs and a wide range of features for specific Access Control applications.
Technical Information
Power Description
Number of +12V Rails:
2
Input Voltage Type:
AC
Input Voltage:
110 V AC
Output Voltage:
12 V DC
Output Voltage Detail:
12 V DC @ 10 A
Input Current:
6 A @ 110V
Output Current:
10 A
Physical Characteristics
Form Factor:
Wall Mount
Height:
26"
Width:
19"
Depth:
6.3"
Weight (Approximate):
28.60 lb
Miscellaneous
Package Contents:
- MAXIMAL55E Proprietary Power Supply
- Battery Leads
- Key Lock
Compatibility:
- Access Control Applications
- Fire Alarm Applications
Country of Origin:
United States
NDAA Compliant:
Yes
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN:
0782239947584
UPC:
782239947584
EAN:
0782239947584
UNSPSC:
39121004
Get help from a Barcoding Expert!
The Altronix MAXIMAL55E Accessory is also known as
ALT-MAXIMAL55E
