Receptacles:
16
Altronix MAXIMAL3R Power Device
Part Number:
MAXIMAL3R
Model:
ALTV2416
Altronix ALTV2416 Accessory Model Overview
The Altronix ALTV2416 Power Supply provides 24VAC or 28VAC distributed via sixteen (16) fuse or PTC protected outputs for powering CCTV Cameras, heaters and other video accessories. It has a supply current of 24VAC @ 8 amp (200VA) or 28VAC @ 7 amp (200VA). Main fuse is rated @ 10 amp/250V. It has a power ON/OFF switch. ALTV2416 Power Supply's ease of installation saves time and eliminates costly labor.

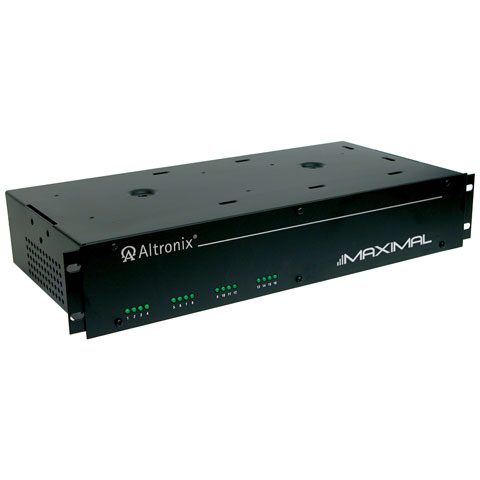

Altronix MAXIMAL3R Power Device Overview
Maxim3R units distribute and switch power to access control systems and accessories. They convert a 115VAC 50/60Hz input into sixteen (16) independently controlled 12VDC or 24VDC fuse protected outputs. Outputs are activated by an normally open (NO) or normally closed (NC) dry trigger input from an Access Control System, Card Reader, Keypad, Push Button, PIR, etc. Units will route power to a variety of access control hardware devices including: Mag Locks, Electric Strikes, Magnetic Door Holders, etc. Outputs will operate in both Fail-Safe and/or Fail-Secure modes. The FACP Interface enables Emergency Egress, Alarm Monitoring, or may be used to trigger other auxiliary devices. The fire alarm disconnect feature is individually selectable for any or all of the outputs.
Technical Information
Power Description
Input Voltage:
110 V AC
Output Voltage:
- 12 V DC
- 24 V DC
Physical Characteristics
Height:
3.3"
Width:
19.1"
Depth:
8.5"
Miscellaneous
Compatibility:
Access Control Devices:
- Mag Locks
- Electric Strikes
- Magnetic Door Holders
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Country of Origin:
United States
NDAA Compliant:
Yes
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN:
0782239947508
UPC:
782239947508
EAN:
0782239947508
UNSPSC:
39121004
Get help from a Barcoding Expert!
The Altronix MAXIMAL3R Power Device is also known as
ALT-MAXIMAL3R
