Protection Type:
- Short Circuit
- Thermal Overload
Altronix MAXIMAL35E Power Device
Part Number:
MAXIMAL35E
Model:
ALTV2416
Altronix ALTV2416 Accessory Model Overview
The Altronix ALTV2416 Power Supply provides 24VAC or 28VAC distributed via sixteen (16) fuse or PTC protected outputs for powering CCTV Cameras, heaters and other video accessories. It has a supply current of 24VAC @ 8 amp (200VA) or 28VAC @ 7 amp (200VA). Main fuse is rated @ 10 amp/250V. It has a power ON/OFF switch. ALTV2416 Power Supply's ease of installation saves time and eliminates costly labor.

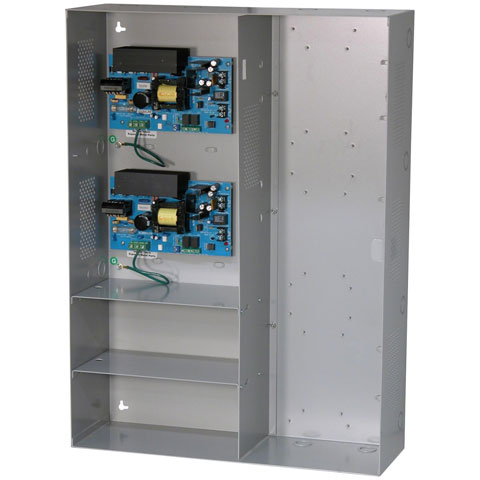

Altronix MAXIMAL35E Power Device Overview
This unit provides system designers and installers with "maximum" power choices and the highest levels of versatility. It provides 12VDC, 24VDC, or 12VDC and 24VDC simultaneously via two (2) single output power supply/chargers. It includes AC fail, low battery and battery presence monitoring. Optional Altronix field installable sub-assemblies provide multiple outputs and a wide range of features for specific Access Control and Fire Alarm applications.
Technical Information
Power Description
Input Voltage Type:
AC
Input Voltage:
110 V AC
Output Voltage:
- 12 V DC
- 24 V DC
Output Voltage Detail:
- 12 V DC @ 6 A
- 12 V DC @ 10 A
- 24 V DC @ 6 A
Input Current:
6 A @ 110V
Output Current:
- 6 A
- 10 A
Physical Characteristics
Form Factor:
Wall Mount
Height:
26"
Width:
19"
Depth:
6.3"
Weight (Approximate):
28.60 lb
Miscellaneous
Compatibility:
- Access Control Systems
- Fire Alarm Applications
Country of Origin:
United States
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN:
0782239947461
UPC:
782239947461
EAN:
0782239947461
UNSPSC:
39121004
Get help from a Barcoding Expert!
The Altronix MAXIMAL35E Power Device is also known as
ALT-MAXIMAL35E
