Protection Type:
- Surge
- Short Circuit
- Thermal Overload
Altronix MAXIMAL33 Power Device
Part Number:
MAXIMAL33
Model:
ALTV2416
Altronix ALTV2416 Accessory Model Overview
The Altronix ALTV2416 Power Supply provides 24VAC or 28VAC distributed via sixteen (16) fuse or PTC protected outputs for powering CCTV Cameras, heaters and other video accessories. It has a supply current of 24VAC @ 8 amp (200VA) or 28VAC @ 7 amp (200VA). Main fuse is rated @ 10 amp/250V. It has a power ON/OFF switch. ALTV2416 Power Supply's ease of installation saves time and eliminates costly labor.

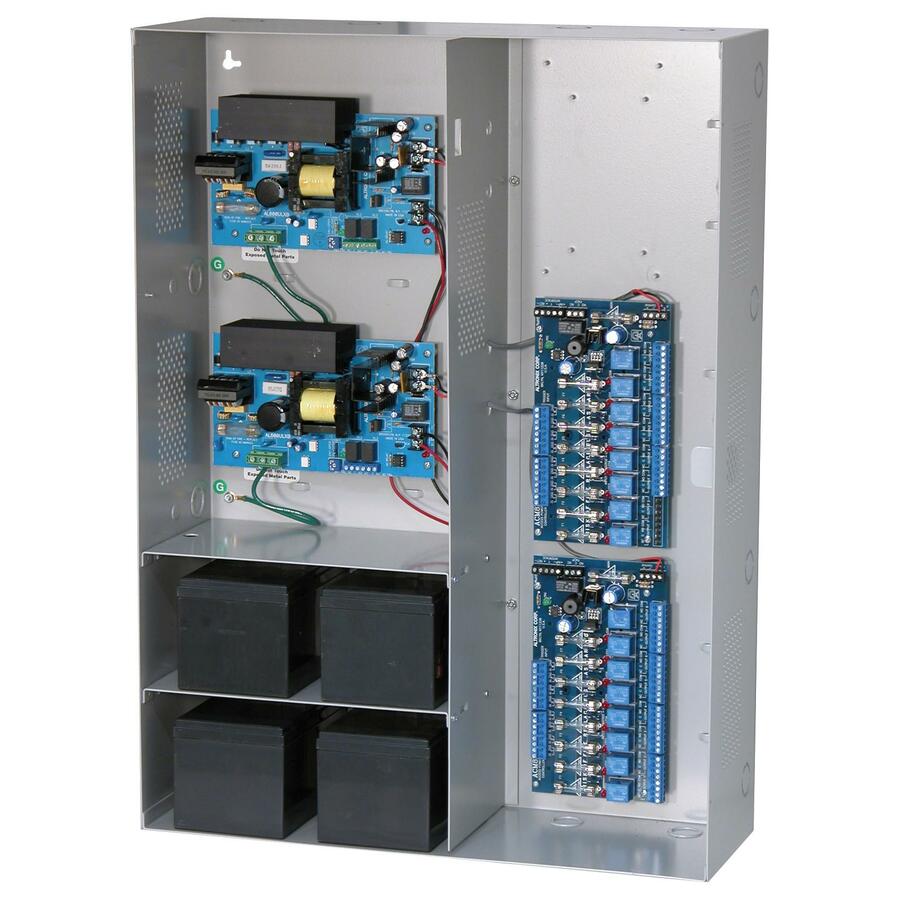

Altronix MAXIMAL33 Power Device Overview
This unit distributes and switches power to access control systems and accessories. It converts a 115VAC 60Hz input into sixteen (16) independently controlled 12VDC and/or 24VDC fuse protected outputs. These power outputs can be converted to dry form "C" contacts. Outputs are activated by an open collector sink or normally open (NO) dry trigger input from an Access Control System, Card Reader, Keypad, Push Button, PIR, etc. The unit will route power to a variety of access control hardware devices including: Mag Locks, Electric Strikes, Magnetic Door Holders, etc. Outputs will operate in both Fail-Safe and/or Fail-Secure modes. The FACP Interface enables Emergency Egress, Alarm Monitoring, or may be used to trigger other auxiliary devices. The fire alarm disconnect feature is individually selectable for any or all of the sixteen (16) outputs.
Technical Information
Power Description
Number of +12V Rails:
16
Input Voltage Type:
AC
Input Voltage:
120 V AC
Output Voltage:
- 12 V DC
- 24 V DC
Output Voltage Detail:
- 12 V DC @ 5.5 A
- 24 V DC @ 5.7 A
Input Current:
7 A @ 110V
Output Current:
- 5.50 A
- 5.70 A
Physical Characteristics
Form Factor:
- Wall Mount
- Enclosure
Height:
26"
Width:
19"
Depth:
6.3"
Weight (Approximate):
40.10 lb
Miscellaneous
Compatibility:
- Signal Equipment
Access Control Systems:
- Mag Locks
- Electric Strikes
- Magnetic Door Holders
Country of Origin:
United States
NDAA Compliant:
Yes
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN:
0782239947409, 5023554576758
UPC:
782239947409
EAN:
0782239947409, 5023554576758
UNSPSC:
39121004
