Altronix ALTV2416 Accessory Model Overview
The Altronix ALTV2416 Power Supply provides 24VAC or 28VAC distributed via sixteen (16) fuse or PTC protected outputs for powering CCTV Cameras, heaters and other video accessories. It has a supply current of 24VAC @ 8 amp (200VA) or 28VAC @ 7 amp (200VA). Main fuse is rated @ 10 amp/250V. It has a power ON/OFF switch. ALTV2416 Power Supply's ease of installation saves time and eliminates costly labor.

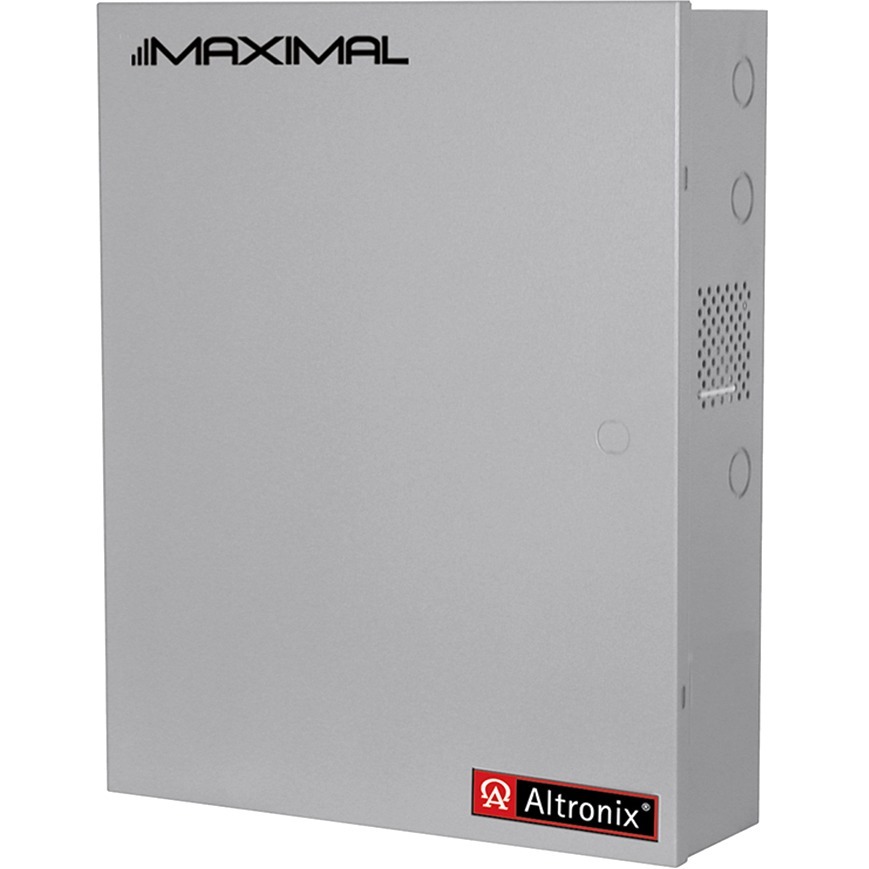

Altronix MAXIMAL13EV Power Device Overview
Maximal13EV provides system designers and installers with maximum power choices and the highest levels of versatility. It provides 12VDC, 24VDC, or 12VDC and 24VDC simultaneously via two (2) single output power supply/chargers. It includes AC fail, low battery and battery presence monitoring. Optional Altronix® field installable UL Listed sub-assemblies provide multiple outputs and a wide range of features for specific Access Control and Fire Alarm applications.
Technical Information
Power Description
Input Voltage Type:
AC
Input Voltage:
220 V AC
Output Voltage:
- 12 V DC @ 4 A
- 12 V DC @ 6 A
- 24 V DC @ 3 A
- 24 V DC @ 6 A
Input Current:
2.5 A @ 220V
Controls/Indicators
Status Indicators:
- AC Input LED
- DC Output LED
Physical Characteristics
Form Factor:
Wall Mount
Height:
26"
Width:
19"
Depth:
6.3"
Weight (Approximate):
42.30 lb
Miscellaneous
Certifications & Standards:
UL
Environmentally Friendly:
Yes
Warranty
Limited Warranty:
Lifetime
Item Numbers
UNSPSC:
39121004
Get help from a Barcoding Expert!
The Altronix MAXIMAL13EV Power Device is also known as
ALT-MAXIMAL13EV
