Altronix MAXIMAL13E

Altronix - MAXIMAL13E Proprietary Power supply - Wall Mount - 110 V AC Input
$731.00
Provides 24 VAC or 28 VAC distributed via sixteen (16) fuse or PTC protected outputs.
The Altronix ALTV2416 Power Supply provides 24 VAC or 28 VAC distributed via sixteen (16) fuse or PTC protected outputs for powering CCTV Cameras, heaters and other video accessories. It has a supply current of 24 VAC @ 8 amp (200VA) or 28 VAC @ 7 amp (200VA). Main fuse is rated @ 10 amp/250V. It has a power ON/OFF switch. ALTV2416 Power Supply's ease of installation saves time and eliminates costly labor.
Altronix MAXIMAL13E Overview

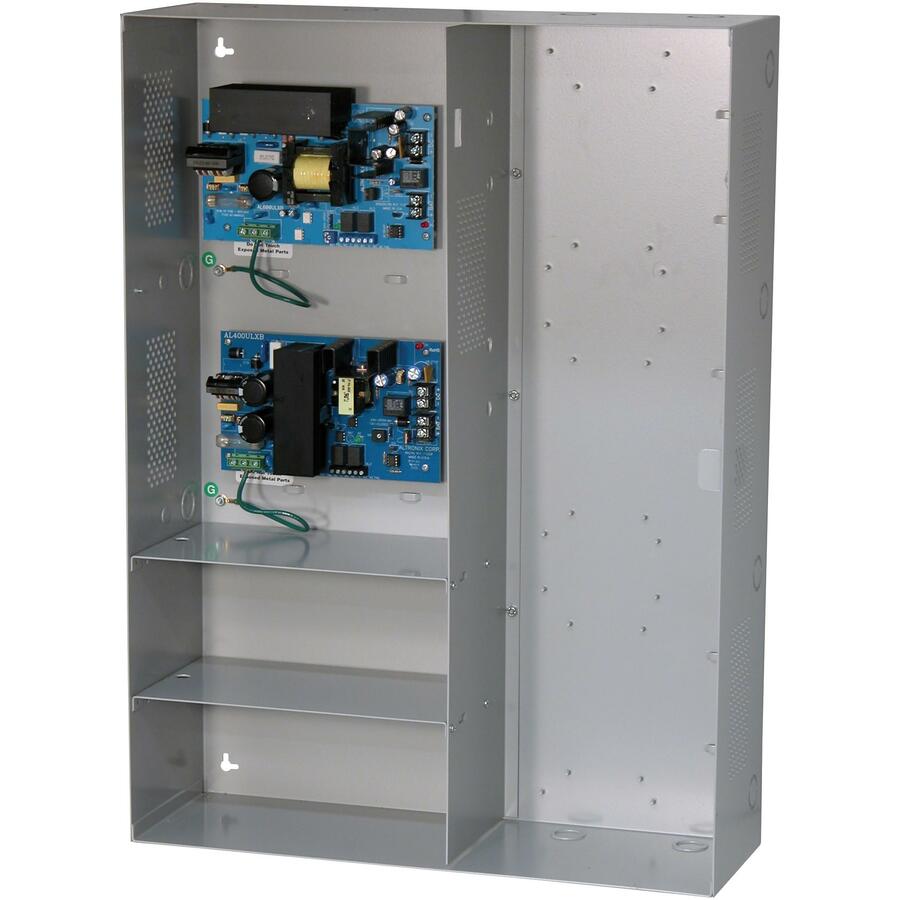

This unit provides system designers and installers with "maximum" power choices and the highest levels of versatility. It provides 12VDC, 24VDC, or 12VDC and 24VDC simultaneously via two (2) single output power supply/chargers. It includes AC fail, low battery and battery presence monitoring. Optional Altronix field installable sub-assemblies provide multiple outputs and a wide range of features for specific Access Control and Fire Alarm applications.

Technical Information
Protection Type:
  • Short Circuit
  • Thermal Overload
Power Description
Input Voltage Type:
AC
Input Voltage:
110 V AC
Output Voltage:
  • 12 V DC @ 4 A
  • 12 V DC @ 6 A
  • 24 V DC @ 3 A
  • 24 V DC @ 6 A
Input Current:
5 A @ 110V
Physical Characteristics
Form Factor:
Wall Mount
Height:
26"
Width:
19"
Depth:
6.3"
Weight (Approximate):
28.60 lb
Miscellaneous
Compatibility:
  • Access Control Systems
  • Fire Alarm Applications
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Country of Origin:
United States
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN: 0782239947348
UPC: 782239947348
EAN: 0782239947348
UNSPSC: 39121004


The Altronix MAXIMAL13E is also known as ALT-MAXIMAL13E .
