Altronix MAXIMAL11E

Altronix - MAXIMAL11E Proprietary Power supply - Wall Mount - 110 V AC Input - 1 +12V Rails
$662.54
Temporarily out of stock; available to order
Provides 24 VAC or 28 VAC distributed via sixteen (16) fuse or PTC protected outputs.
The Altronix ALTV2416 Power Supply provides 24 VAC or 28 VAC distributed via sixteen (16) fuse or PTC protected outputs for powering CCTV Cameras, heaters and other video accessories. It has a supply current of 24 VAC @ 8 amp (200VA) or 28 VAC @ 7 amp (200VA). Main fuse is rated @ 10 amp/250V. It has a power ON/OFF switch. ALTV2416 Power Supply's ease of installation saves time and eliminates costly labor.
Altronix MAXIMAL11E Overview

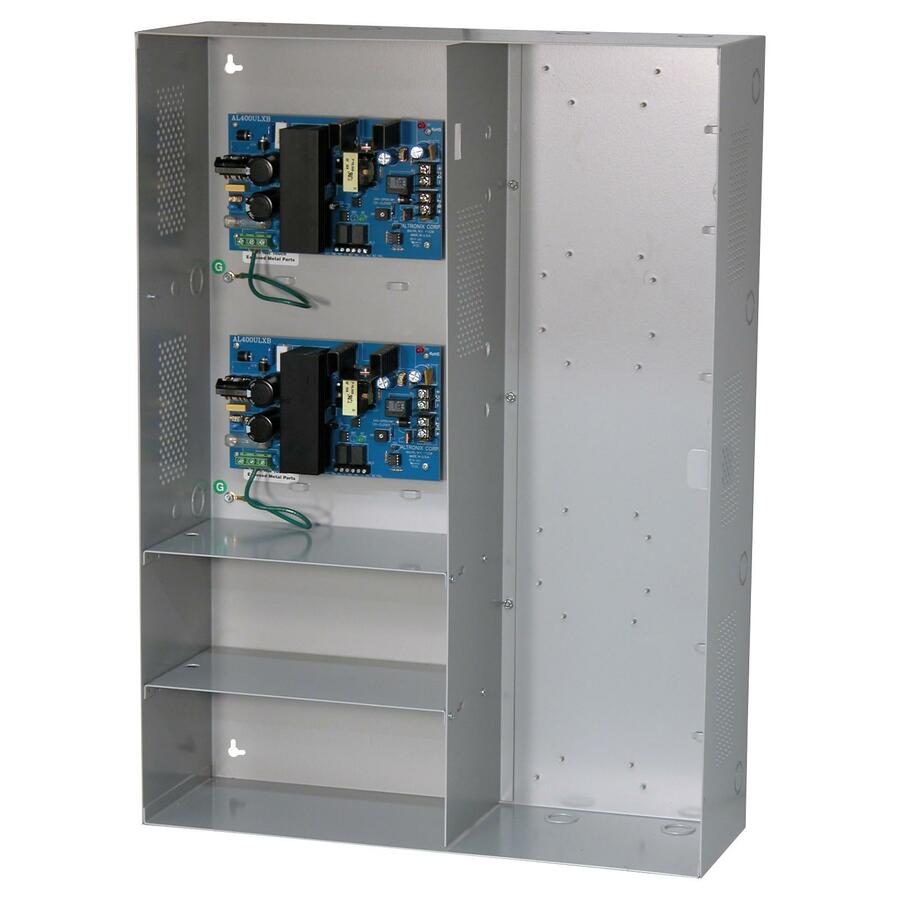

This unit provides system designers and installers with "maximum" power choices and the highest levels of versatility. It provides 12VDC, 24VDC, or 12VDC and 24VDC simultaneously via two (2) single output power supply/chargers. It includes AC fail, low battery and battery presence monitoring. Optional Altronix field installable sub-assemblies provide multiple outputs and a wide range of features for specific Access Control applications.

Protect Your Product
Technical Information
Protection Type:
  • Short Circuit
  • Thermal Overload
Power Description
Number of +12V Rails:
1
Input Voltage Type:
AC
Input Voltage:
110 V AC
Output Voltage:
  • 12 V DC @ 4 A
  • 24 V DC @ 3 A
Input Current:
4.50 A @ 110V
Physical Characteristics
Form Factor:
Wall Mount
Height:
26"
Width:
19"
Depth:
6.3"
Weight (Approximate):
28.60 lb
Miscellaneous
Compatibility:
  • Access Control Systems
  • Fire Alarm Applications
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN: 0782239947331
UPC: 782239947331
EAN: 0782239947331
UNSPSC: 39121004


The Altronix MAXIMAL11E is also known as ALT-MAXIMAL11E .
