Protection Type:
- Short Circuit
- Thermal Overload
Altronix MAXIMAL11 Power Device
Part Number:
MAXIMAL11
Model:
ALTV2416
Altronix ALTV2416 Accessory Model Overview
The Altronix ALTV2416 Power Supply provides 24VAC or 28VAC distributed via sixteen (16) fuse or PTC protected outputs for powering CCTV Cameras, heaters and other video accessories. It has a supply current of 24VAC @ 8 amp (200VA) or 28VAC @ 7 amp (200VA). Main fuse is rated @ 10 amp/250V. It has a power ON/OFF switch. ALTV2416 Power Supply's ease of installation saves time and eliminates costly labor.

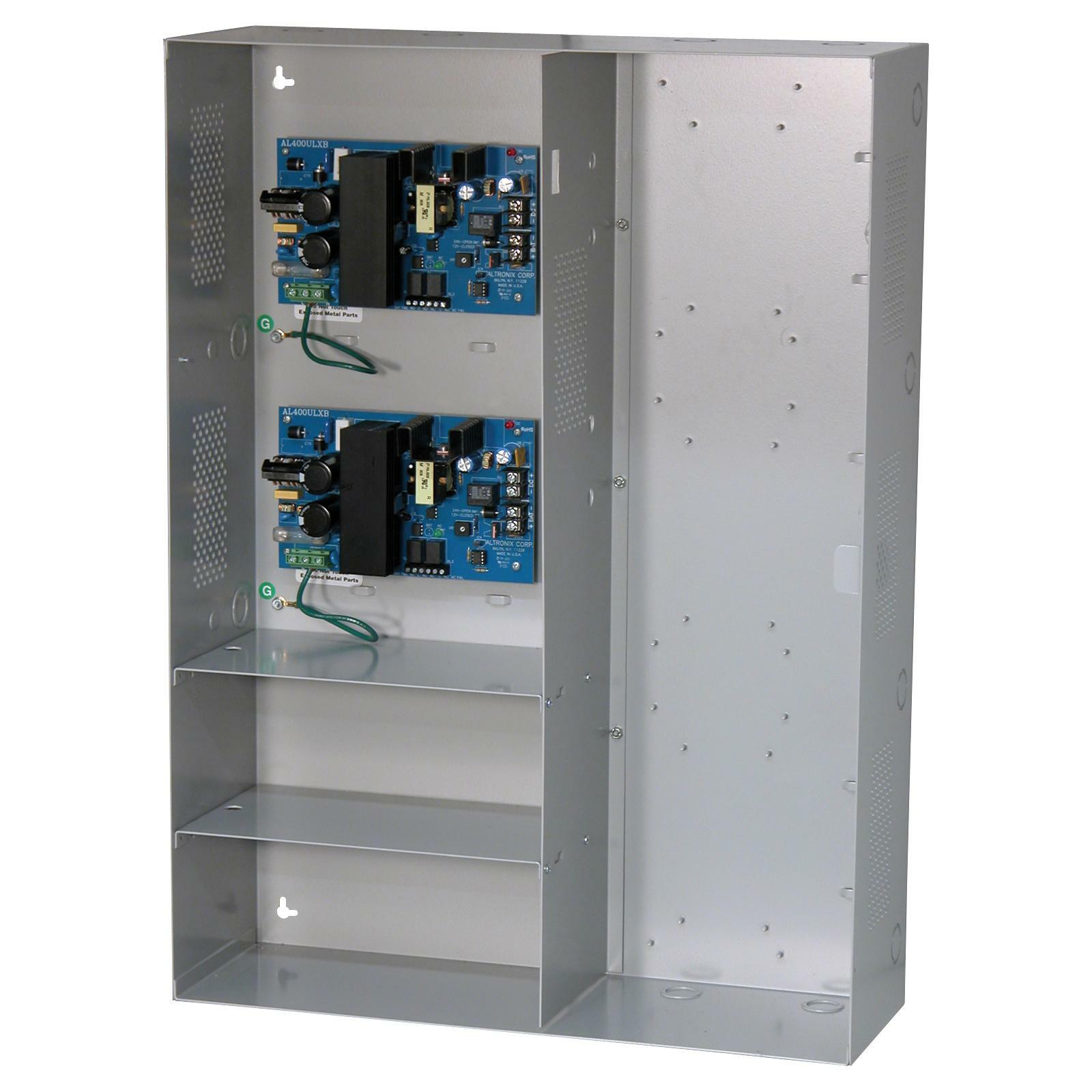

Altronix MAXIMAL11 Power Device Overview
This unit provides system designers and installers with "maximum" power choices and the highest levels of versatility. It provides 12VDC, 24VDC, or 12VDC and 24VDC simultaneously via two (2) single output power supply/chargers. It includes AC fail, low battery and battery presence monitoring. Optional Altronix field installable sub-assemblies provide multiple outputs and a wide range of features for specific Access Control applications.
Technical Information
Power Description
Number of +12V Rails:
1
Input Voltage Type:
AC
Input Voltage:
110 V AC
Output Voltage:
- 12 V DC
- 24 V DC
Output Voltage Detail:
- 12 V DC @ 4 A
- 24 V DC @ 3 A
Input Current:
4.5 A @ 110V
Output Current:
- 4 A
- 3 A
Physical Characteristics
Form Factor:
Wall Mount
Height:
26"
Width:
19"
Depth:
6.3"
Weight (Approximate):
28.60 lb
Miscellaneous
Compatibility:
- Access Control Systems
- Fire Alarm Applications
NDAA Compliant:
Yes
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN:
0782239947331
UPC:
782239947331
EAN:
0782239947331
UNSPSC:
39121004
