Product Description:

  24vdc 20 amp, MaxFit Enclosure
Explore all Altronix Parts Accessories
Add to Quote
Altronix MAXFIT77FE Security System Products
Altronix MAXFIT77FE Security System Products
Altronix MAXFIT77FE Security System Products Altronix MAXFIT77FE Security System Products

Altronix Parts Accessory Model Overview

Products and parts from Altronix.
Altronix MAXFIT77FE Security System Products Overview

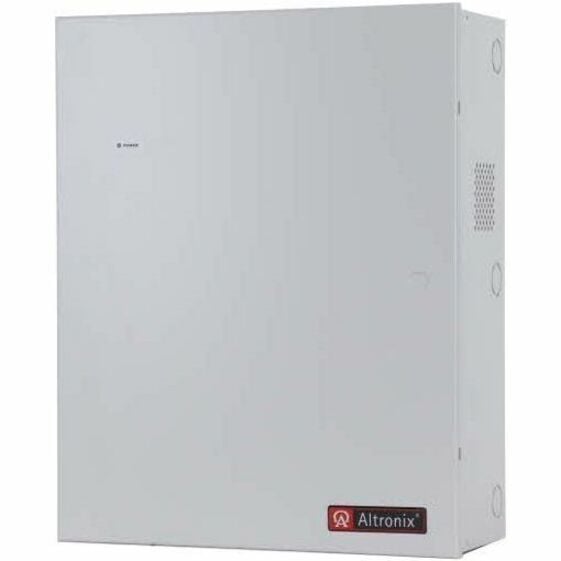

Altronix MaxFit Dual Power Supplies Expandable Power Systems provide system designers and installers with optimum power choices and the highest levels of versatility in a more compact and economical enclosure. Units provide 12VDC, 24VDC, or 12VDC and 24VDC simultaneously via two (2) single output power supply/chargers and include AC fail, low battery, and battery presence monitoring. Enclosure accommodates up to four (4) 12VDC/12AH batteries.

Technical Information
Protection Type:
  • Short Circuit
  • Thermal
Features:
  • LED indicator
  • Compact
Power Description
Number of +12V Rails:
1
Input Voltage:
120 V AC
Output Voltage:
  • 12 V DC
  • 24 V DC
Output Voltage Detail:
24 V DC @ 10 A
Output Current:
10 A
Input Frequency:
60Hz
Environmental Conditions
Minimum Operating Temperature:
32°F (0°C)
Maximum Operating Temperature:
120.2°F (49°C)
Physical Characteristics
Form Factor:
Enclosure
Height:
20.5"
Width:
16.5"
Depth:
6.3"
Weight (Approximate):
21.70 lb
Miscellaneous
Country of Origin:
United States
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
Lifetime
Item Numbers
UNSPSC: 39121004
