Altronix MAXFIT33FE Power Device

Altronix - 12/24VDC@12A Power supply IN MAXFIT ENC

Filtered and electronically regulated outputs.
Thermal and short circuit protection with auto reset.
Additional aux. Class 2 power-limited outputs rated @ 1A.
Supervision: - AC Fail - Low Battery and Battery Presence - Low power shutdown.
Supervised fire alarm disconnect.
Built-in 30-50% faster charger for sealed lead acid or gel type batteries.
Low power cutoff - protects stand-by batteries from deep discharge.
AC input and DC output LED indicators.
Enclosure accommodates up to four (4) 12VDC/12AH batteries.
Lifetime Warranty / Made in the U.S.A.

Need a different version? See all Altronix Parts Accessories

$751.91

Add to Quote

Overview

Altronix Parts Accessory Model Overview

Products and parts from Altronix.

Altronix MAXFIT33FE Power Device Overview

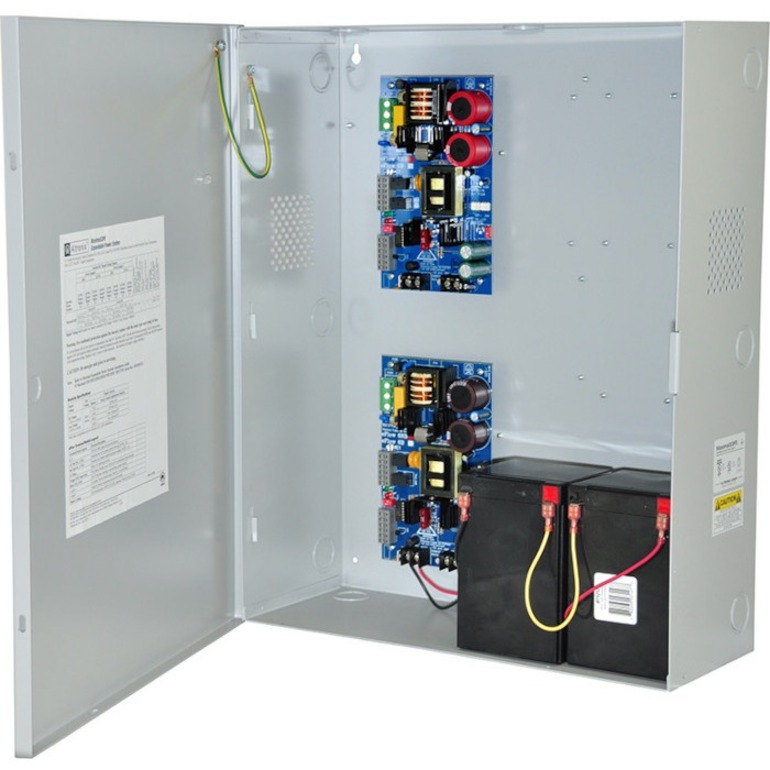

Altronix MaxFit33FE Dual Power Supply Expandable Power Systems provides system designers and installers with optimum power choices and the highest levels of versatility in a more compact and economical enclosure. Unit provides 12VDC and/or 24VDC via two (2) single output power supply/charger. Includes AC fail, low battery, and battery presence monitoring. Enclosure accommodates up to four (4) 12VDC/12AH batteries.

Detailed Specs

Power Description

Input Voltage:

120 V AC

Output Voltage:

12 V DC @ 6 A
24 V DC @ 6 A

Output Current:

6 A

Physical Characteristics

Form Factor:

Enclosure

Height:

20.5"

Width:

16.5"

Depth:

6.3"

Weight (Approximate):

21.20 lb

Miscellaneous

Package Contents:

1 x Enclosure, 20.5"H x 16.5"W x 6.25"D, Grey, 19 Gauge, Indoor
2 x Power Supply Charger, Single Output, 12/24VDC @ 6A, Aux Output, FAI, LinQ2 Ready, 115VAC, Board

Environmentally Friendly:

Yes

Environmental Certification:

RoHS

Country of Origin:

United States

Warranty

Limited Warranty:

Lifetime

Item Numbers

UNSPSC: 39121004

Reviews

Q&A

Get help from a Barcoding Expert!

The Altronix MAXFIT33FE Power Device is also known as ALT-MAXFIT33FE
