Protection Type:
- Short Circuit
- Thermal Overload
Altronix LPS5C12X Power Device
Part Number:
LPS5C12X
Model:
ALTV2416
Altronix ALTV2416 Accessory Model Overview
The Altronix ALTV2416 Power Supply provides 24VAC or 28VAC distributed via sixteen (16) fuse or PTC protected outputs for powering CCTV Cameras, heaters and other video accessories. It has a supply current of 24VAC @ 8 amp (200VA) or 28VAC @ 7 amp (200VA). Main fuse is rated @ 10 amp/250V. It has a power ON/OFF switch. ALTV2416 Power Supply's ease of installation saves time and eliminates costly labor.

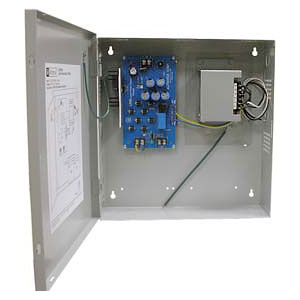

Altronix LPS5C12X Power Device Overview
These linear power supply/charger will convert a 115VAC 60Hz input to a 3.5 amp via 12VDC or 24VDC continuous true UPS output. The output stays regulated until the battery discharges to 25% capacity.
Technical Information
Power Description
Number of +12V Rails:
1
Input Voltage Type:
AC
Input Voltage:
110 V AC
Output Voltage:
12 V DC
Output Voltage Detail:
12 V DC @ 3.5 A
Input Current:
1 A @ 110V
Output Current:
3.50 A
Physical Characteristics
Form Factor:
Wall Mount
Height:
13.5"
Width:
13"
Depth:
3.3"
Weight (Approximate):
11.40 lb
Miscellaneous
Package Contents:
- LPS5C12X Proprietary Power Supply
- Battery Leads
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN:
0782239935857
UPC:
782239935857
EAN:
0782239935857
UNSPSC:
39121004
