Protection Type:
- Short Circuit
- Thermal Overload
Altronix LPS3C24X Accessory
Part Number:
LPS3C24X
Model:
ALTV2416
Altronix ALTV2416 Accessory Model Overview
The Altronix ALTV2416 Power Supply provides 24VAC or 28VAC distributed via sixteen (16) fuse or PTC protected outputs for powering CCTV Cameras, heaters and other video accessories. It has a supply current of 24VAC @ 8 amp (200VA) or 28VAC @ 7 amp (200VA). Main fuse is rated @ 10 amp/250V. It has a power ON/OFF switch. ALTV2416 Power Supply's ease of installation saves time and eliminates costly labor.
Altronix LPS3C24X Accessory Overview

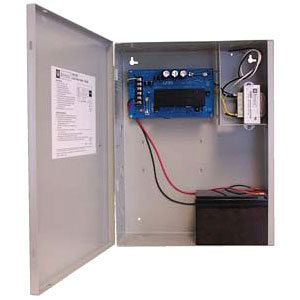

These linear power supply/charger is specifically designed to provide the power needed by the most demanding security and access control applications. It will convert a 115VAC 50/60Hz input to a 2.5 amp, 12VDC or 24VDC output.
Technical Information
Power Description
Input Voltage Type:
AC
Input Voltage:
110 V AC
Output Voltage:
24 V DC
Output Voltage Detail:
24 V DC @ 2.5 A
Input Current:
1.6 A @ 110V
Output Current:
2.50 A
Physical Characteristics
Form Factor:
Wall Mount
Height:
15.5"
Width:
12.2"
Depth:
4.5"
Weight (Approximate):
12.10 lb
Miscellaneous
Package Contents:
- LPS3C24X Proprietary Power Supply
- Battery Leads
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN:
0782239930777
UPC:
782239930777
EAN:
0782239930777
UNSPSC:
39121004
