Connectivity Technology:
Wired
Number of Input Devices Supported:
8
Number of Output Devices Supported:
8
Maximum Operating Distance:
750 ft
Altronix Parts Accessory Model Overview
Products and parts from Altronix.

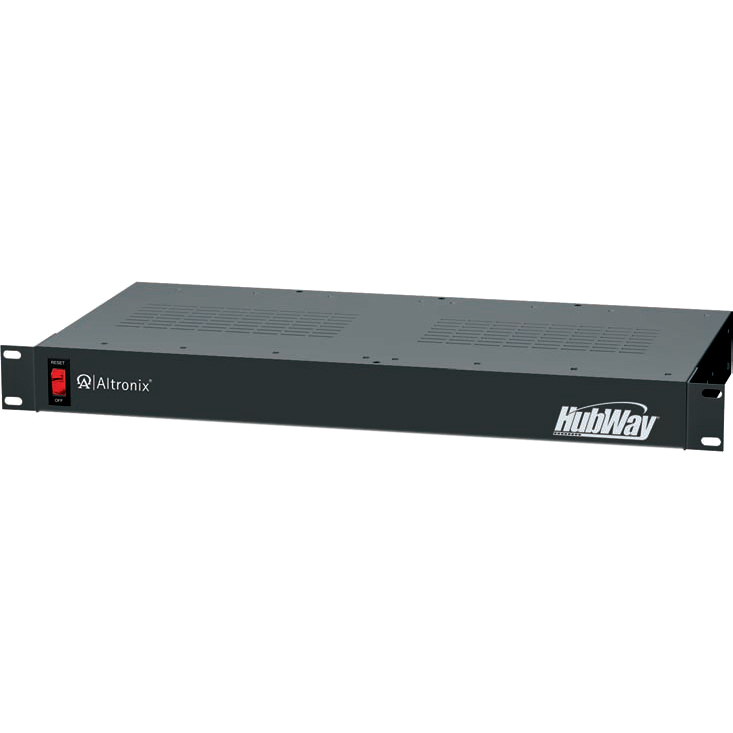

Altronix HUBWAY8CDS Accessory Overview
Altronix new HubWay8CDS Passive UTP Transceiver Hub w/Integral Camera Power transmits UTP video, RS422/RS485 data and power over a single CAT-5 or higher structured cable. Unit provides 8 camera channels in a space saving 1U EIA 19" rack mount chassis which may be wall or shelf mounted. Video transmission range is up to 750 ft. max. per channel. Units are compatible with AC and/or DC fixed or PTZ cameras when utilizing Altronix HubWayAv, HubWayDv or HubWayDvi Video Balun/Combiners. An optional HubSat4D Passive UTP Transceiver Hub with Integral Camera Power can be used as an accessory module to transmit video from up to 4 cameras over a single CAT-5 or higher structured cable back to the HubWay8CDS. In addition, the HubSat4D provides power to these cameras locally to eliminate the possibility of voltage drop associated with long cable runs.
Technical Information
Interfaces/Ports
Network (RJ-45):
Yes
Serial Port:
Yes
Number of Network (RJ-45) Ports:
8
Media & Performance
Media Type Supported:
Twisted Pair
Twisted Pair Cable Standard:
Category 5
Power Description
Input Voltage:
115 V AC
Physical Characteristics
Transmitter Height:
1.63"
Transmitter Width:
19.13"
Transmitter Depth:
8.50"
Form Factor:
- Rack-mountable
- Wall Mountable
Miscellaneous
Package Contents:
- HubWay Video Console/Extender
- Grounded Line Cord
- 2 x Mounting Brackets
- 6 x Flat Head Screws for Mounting Brackets
- 4 x Rubber Pads
Certifications & Standards:
- UL 2044
- CUL Listed - CSA Standard C22.2 No.1-04
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN:
0782239944934
UPC:
782239944934
EAN:
0782239944934
UNSPSC:
45111815
Get help from a Barcoding Expert!
The Altronix HUBWAY8CDS Accessory is also known as
ALT-HUBWAY8CDS
