Altronix HUBWAY8CD Accessory

Part Number: HUBWAY8CD
Model: Parts
to get Free Ground Shipping on your order.
Add to My Shopping List Add to Compare
$674.63

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Connectivity Technology
Wired
Number of Input Devices Supported
8
Number of Output Devices Supported
8
Maximum Operating Distance
750 ft

Product Description:

  Altronix HubWay Video Console/Extender - 8 Input Device - 8 Output Device - 750 ft Range - 8 x Network (RJ-45) - Serial Port - Twisted Pair - Category 5 - Rack-mountable, Wall Mountable
Explore all Altronix Parts Accessories
Add to Quote
Altronix HUBWAY8CD Accessory
Altronix HUBWAY8CD Accessory

Altronix Parts Accessory Model Overview

Products and parts from Altronix.
Altronix HUBWAY8CD Accessory Overview

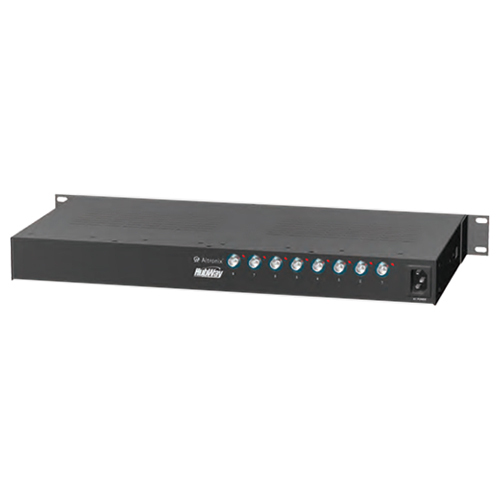

Altronix HubWay8CD Passive UTP Transceiver Hub w/Integral Camera Power transmits UTP video, RS422/RS485 data and power over a single CAT-5 or higher structured cable. Unit provides 8 camera channels in a space saving 1U EIA 19" rack mount chassis which may be rack, wall or shelf mounted. Video transmission range is up to 750 ft. max. per channel. Units are compatible with AC and/or DC fixed or PTZ cameras when utilizing Altronix HubWayAv, HubWayDv or HubWayDvi Video Balun/Combiners. In addition, the unit features individually selectable 24VAC or 28VAC PTC protected outputs with surge suppression. An optional HubSat4D Passive UTP Transceiver Hub with Integral Camera Power can be used as an accessory module to transmit video from up to 4 cameras over a single CAT-5 or higher structured cable back to the HubWay8CD. In addition, the HubSat4D provides power to these cameras locally to eliminate the possibility of voltage drop associated with long cable runs.

Technical Information
Connectivity Technology:
Wired
Number of Input Devices Supported:
8
Number of Output Devices Supported:
8
Maximum Operating Distance:
750 ft
Interfaces/Ports
Network (RJ-45):
Yes
Serial Port:
Yes
Number of Network (RJ-45) Ports:
8
Media & Performance
Media Type Supported:
Twisted Pair
Twisted Pair Cable Standard:
Category 5
Power Description
Input Voltage:
  • 115 V AC
  • 230 V AC
Physical Characteristics
Transmitter Height:
1.63"
Transmitter Width:
19.13"
Transmitter Depth:
8.50"
Form Factor:
  • Rack-mountable
  • Wall Mountable
Miscellaneous
Package Contents:
  • HubWay Video Console/Extender
  • 2 x Mounting Brackets
  • 6 x Flat Head Screws for Mounting Brackets
  • 4 x Rubber Pads
  • Grounded Line Cord
Certifications & Standards:
  • UL 2044
  • CUL
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Country of Origin:
United States
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN: 0782239944897
UPC: 782239944897
EAN: 0782239944897
UNSPSC: 45111815
