Altronix HUBWAY82CDS Power Device

Altronix ALTV2416 - Altronix HubWay Video Console/Extender - 8 Input Device - 8 Output Device - 750 ft Range - 8 x Network (RJ-45) - Serial Port - Twisted Pair - Category 5 - Rack-mountable, Wall Mountable
Add to Quote
Altronix ALTV2416 Accessory Model Overview
The Altronix ALTV2416 Power Supply provides 24VAC or 28VAC distributed via sixteen (16) fuse or PTC protected outputs for powering CCTV Cameras, heaters and other video accessories. It has a supply current of 24VAC @ 8 amp (200VA) or 28VAC @ 7 amp (200VA). Main fuse is rated @ 10 amp/250V. It has a power ON/OFF switch. ALTV2416 Power Supply's ease of installation saves time and eliminates costly labor.
Altronix HUBWAY82CDS Power Device Overview

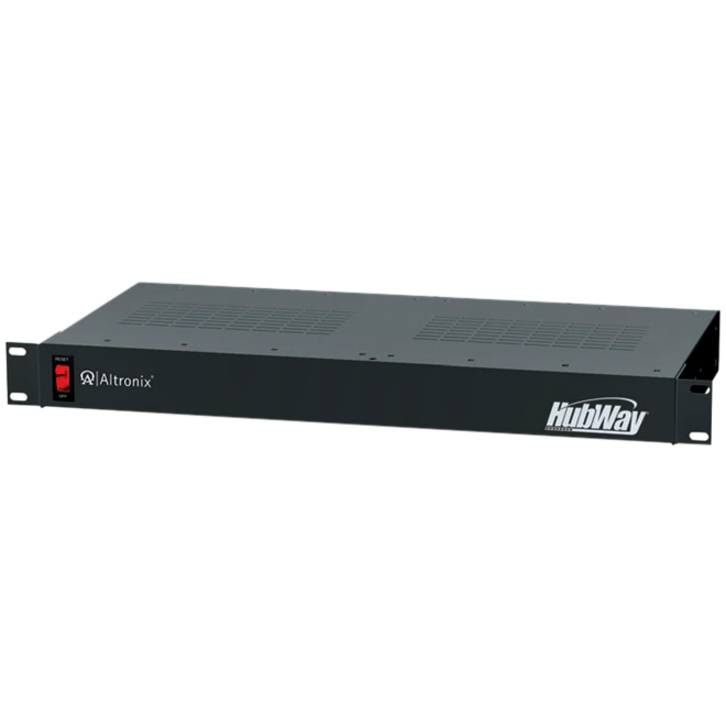

Altronix new HubWay82CDS Passive UTP Transceiver Hub w/Integral Camera Power transmits UTP video, RS422/RS485 data and power over a single CAT-5 or higher structured cable. Unit provides 8camera channels in a space saving 1U EIA 19" rack mount chassis which may be wall or shelf mounted. Video transmission range is up to 750 ft. max. per channel. Units are compatible with AC fixed or PTZ cameras when utilizing Altronix HubWayAv Video Balun/Combiners. An optional HubSat4D Passive UTP Transceiver Hub with Integral Camera Power can be used as an accessory module to transmit video from up to 4 cameras over a single CAT-5or higher structured cable back to the HubWay82CDS. In addition, the HubSat4D provides power to these cameras locally to eliminate the possibility of voltage drop associated with long cable runs.

Technical Information
Connectivity Technology:
Number of Input Devices Supported:
Number of Output Devices Supported:
Maximum Operating Distance:
750 ft
Network (RJ-45):
Serial Port:
Number of Network (RJ-45) Ports:
Media & Performance
Media Type Supported:
Twisted Pair
Twisted Pair Cable Standard:
Category 5
Power Description
Input Voltage:
  • 115 V AC
  • 230 V AC
Physical Characteristics
Transmitter Height:
Transmitter Width:
Transmitter Depth:
Form Factor:
  • Rack-mountable
  • Wall Mountable
Package Contents:
  • HubWay Video Console/Extender
  • 2 x Mounting Brackets
  • 6 x Flat Head Screws for Mounting Brackets
  • 4 x Rubber Pads
  • 8 x Video Balun/Combiners
  • Grounded Line Cord
Certifications & Standards:
  • UL(2044)
  • CUL
Environmentally Friendly:
Environmental Certification:
Limited Warranty:
Item Numbers
GTIN: 0782239945122
UPC: 782239945122
EAN: 0782239945122
UNSPSC: 45111815
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Altronix HUBWAY82CDS Power Device is also known as ALT-HUBWAY82CDS
