Altronix HUBWAY162CD

Altronix Accessories - HubWay 162CD Video Extender - Wall Mountable, Rack-mountable
$1,169.60
Temporarily out of stock; available to order
Provides 24 VAC or 28 VAC distributed via sixteen (16) fuse or PTC protected outputs.
The Altronix ALTV2416 Power Supply provides 24 VAC or 28 VAC distributed via sixteen (16) fuse or PTC protected outputs for powering CCTV Cameras, heaters and other video accessories. It has a supply current of 24 VAC @ 8 amp (200VA) or 28 VAC @ 7 amp (200VA). Main fuse is rated @ 10 amp/250V. It has a power ON/OFF switch. ALTV2416 Power Supply's ease of installation saves time and eliminates costly labor.
Altronix HUBWAY162CD Overview

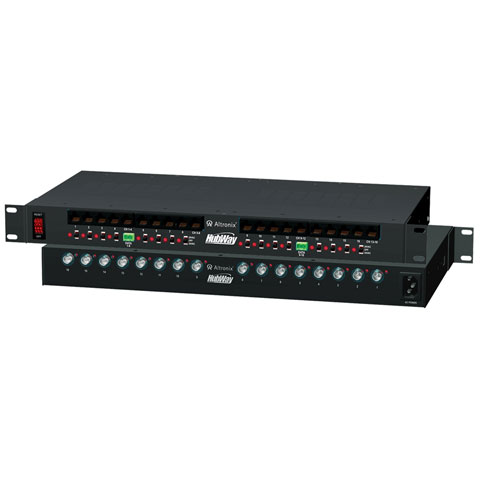

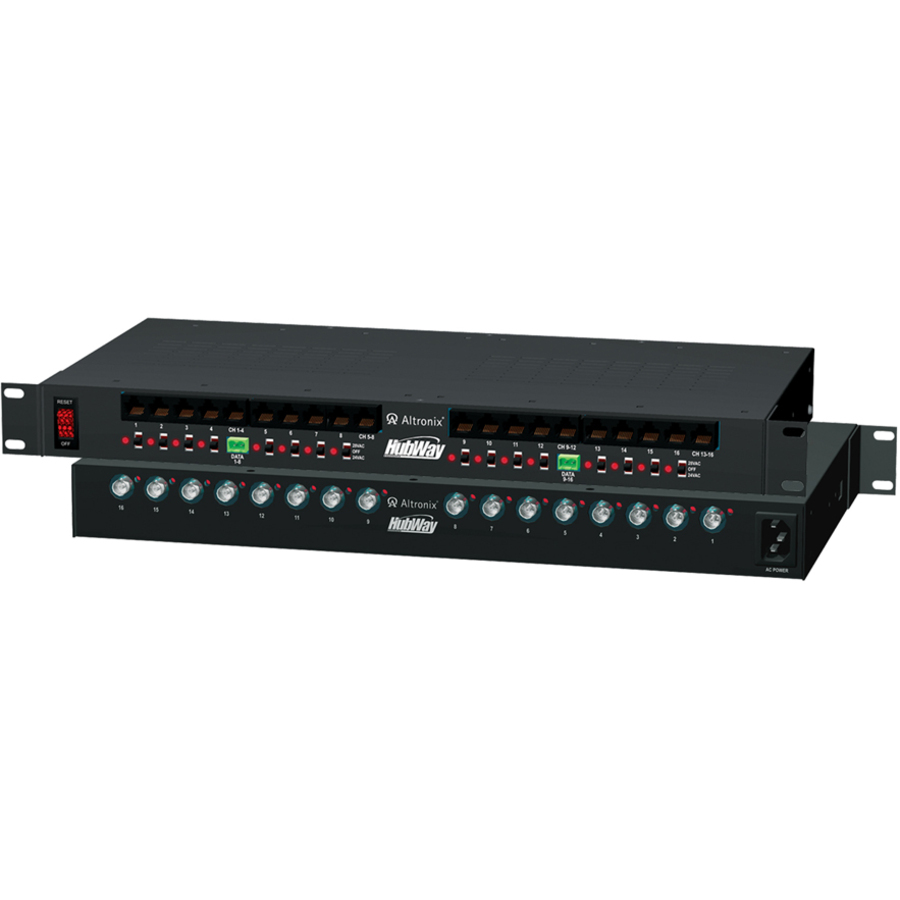

Altronix HubWay162CD Passive UTP Transceiver Hub w/Integral Camera Power transmits UTP video, RS422/RS485 data and power over a single CAT-5 or higher structured cable. Unit provides 16 camera channels in a space saving 1U EIA 19" rack mount chassis which may be rack, wall or shelf mounted. Video transmission range is up to 750 ft. max. per channel. Units are compatible with AC fixed or PTZ cameras when utilizing Altronix HubWayAv Video Balun/Combiners. In addition, the unit features individually selectable 24VAC or 28VAC PTC protected outputs with surge suppression. An optional HubSat4D Passive UTP Transceiver Hub with Integral Camera Power can be used as an accessory module to transmit video from up to 4 cameras over a single CAT-5 or higher structured cable back to the HubWay16CD. In addition, the HubSat4D provides power to these cameras locally to eliminate the possibility of voltage drop associated with long cable runs.

Protect Your Product
Physical Characteristics
Transmitter Height:
1.63"
Transmitter Width:
19.13"
Transmitter Depth:
8.50"
Form Factor:
  • Wall Mountable
  • Rack-mountable
Miscellaneous
Package Contents:
  • HubWay 162CD Video Extender
  • 16 x AC (HubWayAv) Video Balun/Combiners
Additional Information:
  • 16 Individual power LED indicators
  • AC input power indicator

Compatibility:

  • CCTV Camera
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN: 0782239945160
UPC: 782239945160
EAN: 0782239945160
UNSPSC: 43222619


The Altronix HUBWAY162CD is also known as ALT-HUBWAY162CD .
