Altronix EFLOW104NX8 Products

Altronix - Altronix Eight (8) Fused Outputs Power Supply/Charger - Wall Mount - 120 V AC Input / 24 V DC
  • Power Supply offers maximum power feasibility and convenience
  • Delivers 24 V DC @ 10 A to ensure that your device is always ready to use
Read More

Need a different version? See all Altronix Parts Accessories

$432.14
Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
Altronix EFLOW104NX8 Products
Altronix EFLOW104NX8 Products
Altronix Parts Accessory Model Overview
Products and parts from Altronix.
Altronix EFLOW104NX8 Products Overview

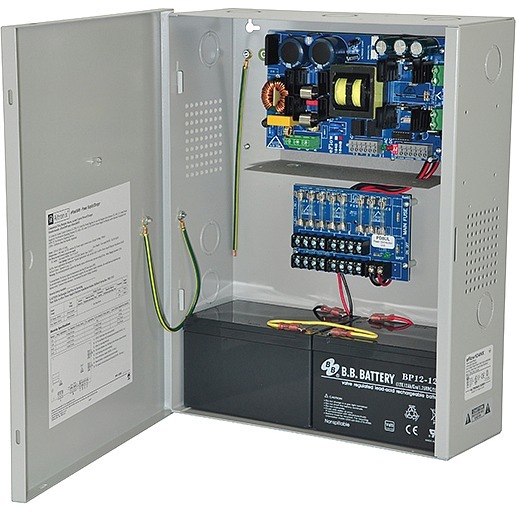

eFlow104NX8 is a power supply/charger that converts a 120VAC 60Hz input into eight (8) fuse protected 24VDC outputs with a total of 10 amps max. The unit includes an unswitched aux. output. It also offers a suite of features that includes fire alarm disconnect, over voltage protection, and low power disconnect which prevents deep discharge of stand-by batteries.
Power Description
Input Voltage:
120 V AC
Output Voltage:
24 V DC @ 10 A
Physical Characteristics
Form Factor:
Wall Mount
Height:
15.5"
Width:
12.3"
Depth:
4.5"
Weight (Approximate):
8.80 lb
Miscellaneous
Compatibility:
  • Access Control System
  • Burglar Alarm System
  • Fire Protective Signaling System
Environmentally Friendly:
Yes
Country of Origin:
United States
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN: 0782239952328
UPC: 782239952328
EAN: 0782239952328
UNSPSC: 39121004
