Altronix EFLOW102NX16D Products

Altronix - Altronix Sixteen (16) PTC Outputs Power Supply/Charger - Wall Mount - 120 V AC Input / 12 V DC - 16 +12V Rails
  • Power Supply offers maximum power productivity with added dependability
  • 12 V DC @ 10 A ensures the safety of your device
Read More

Need a different version? See all Altronix Parts Accessories

CA$618.49
Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
Altronix EFLOW102NX16D Products
Altronix EFLOW102NX16D Products
Altronix Parts Accessory Model Overview
Products and parts from Altronix.
Altronix EFLOW102NX16D Products Overview

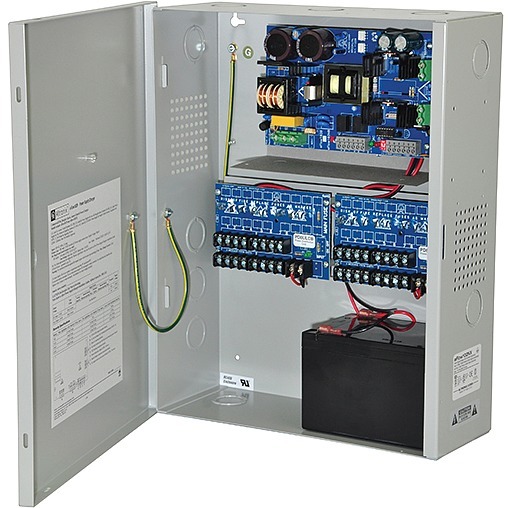

eFlow102NX16D is a power supply/charger that converts a 120VAC 60Hz input into sixteen (16) PTC protected power-limited 12VDC outputs with a total of 10 amps max. The unit includes an unswitched aux. output. It also offers a suite of features that includes fire alarm disconnect, over voltage protection, and low power disconnect which prevents deep discharge of stand-by batteries.
Power Description
Number of +12V Rails:
16
Input Voltage:
120 V AC
Output Voltage:
12 V DC @ 10 A
Physical Characteristics
Form Factor:
Wall Mount
Height:
15.5"
Width:
12.3"
Depth:
4.5"
Weight (Approximate):
8.75 lb
Miscellaneous
Compatibility:
  • Access Control System
  • Burglar Alarm System
  • Fire Protective Signaling System
Environmentally Friendly:
Yes
Country of Origin:
United States
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN: 0782239952298
UPC: 782239952298
EAN: 0782239952298
UNSPSC: 39121004
