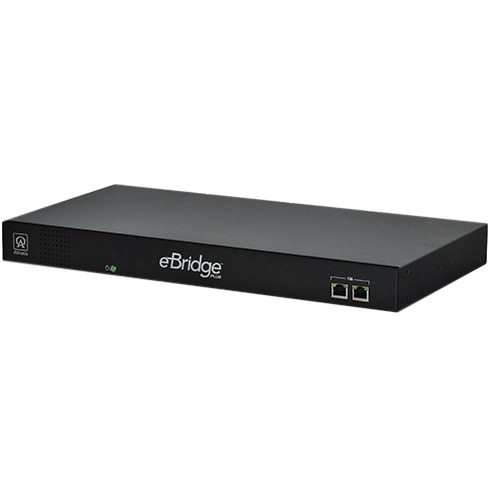

Altronix EBRIDGE800E Power Device

Altronix - Altronix EoC 8 Port Receiver with Integrated 240W PoE/PoE+ Switch - 8 Ports - Manageable - 2 Layer Supported - Twisted Pair, Coaxial - 1U High - Rack-mountable - Lifetime Limited Warranty
  • 8-ports provide 30W full power per port.
  • 240W total power.
  • IEEE 802.3at (30W), IEEE 802.3af (15.4W).
  • (2) 1Gb uplinks (10/100/1000 Mbps).
  • Each port rated at 100Mbps at distances up to 300m.
  • Built-in IP management allows for remote camera reset and monitoring.
  • Email and Windows Dashboard Alert notifications report real-time diagnostics.
  • Eliminates the costs and labor associated with installing
  • Retrofit digital IP cameras in an analog CCTV installation.
  • Works with Megapixel, HD720, HD1080 & VGA (SD) cameras.
Read More

Need a different version? See all Altronix Parts Accessories

$2,118.54
Add to Quote
Add to My Shopping List Add to Compare
Altronix EBRIDGE800E Power Device
Altronix EBRIDGE800E Power Device
Altronix EBRIDGE800E Power Device
Altronix Parts Accessory Model Overview
Products and parts from Altronix.
Altronix EBRIDGE800E Power Device Overview

The Bridge800E is an all-in-one head-end solution for upgrading coax to IP that combines a PoE+ switch and EoC Receiver into a single integrated unit for upgrading existing coax infrastructure and deploying the latest IP devices. This 8-Port Managed EoC Receiver with Integral PoE+ switch provides 30W full power per port (240W max). Features also include an integral battery charger for applications requiring backup and embedded LINQ™ Technology to monitor, control and report power and diagnostics from anywhere.

Interfaces/Ports
Total Number of Network Ports:
8
Uplink Port:
Yes
Modular:
No
Stack Port:
No
Port/Expansion Slot Details:
  • 8 x Network
  • 2 x Gigabit Ethernet Uplink
Media & Performance
Media Type Supported:
  • Twisted Pair
  • Coaxial
Ethernet Technology:
  • Fast Ethernet
  • Gigabit Ethernet
Network Technology:
  • 10/100Base-T
  • 10/100/1000Base-T
Network & Communication
Layer Supported:
2
Management & Protocols
Manageable:
Yes
Power Description
Power Source:
Power Supply
Redundant Power Supply Supported:
No
Physical Characteristics
Compatible Rack Unit:
1U
Form Factor:
Rack-mountable
Height:
1.6"
Width:
19.1"
Depth:
8.5"
Weight (Approximate):
6 lb
Miscellaneous
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Country of Origin:
United States
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN: 0782239955046
UPC: 782239955046
EAN: 0782239955046
UNSPSC: 43222612
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Altronix EBRIDGE800E Power Device is also known as ALT-EBRIDGE800E
