Total Number of Ports:
1
Network (RJ-45):
Yes
DVI:
No
USB:
No
Management Port:
No
Number of PoE (RJ-45) Ports:
1
Number of Network (RJ-45) Ports:
1
Altronix Parts Accessory Model Overview
Products and parts from Altronix.

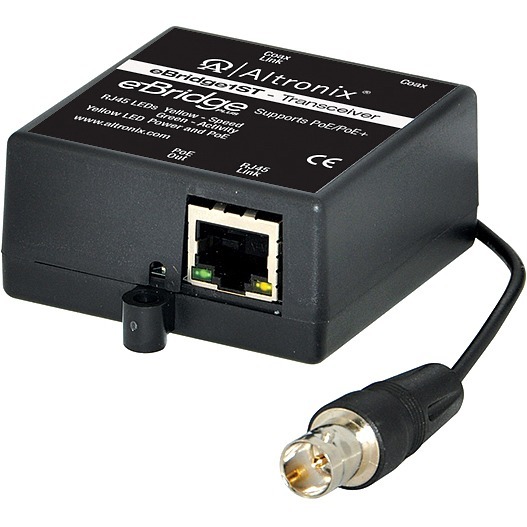

Altronix EBRIDGE1ST Power Device Overview
eBridge1ST EoC transceiver transmits data at 25Mbps over Coax cable to a paired eBridge receiver and provides power in a PoE+ compliant format to an enabled device/camera. The eBridge receiver is available in various options (see compatibility list below/Altronix.com), including built-in midspan, or for use with an external midspan, such as the Altronix Netway series to facilitate network applications. The receiver passes PoE+ power over the same coax cable to the eBridge1ST transceiver, which, in turn passes this power to an enabled IP camera/device. These plug and play units facilitate cost-effective solutions for IP devices. They can be installed at distances greater than 500m. They provide a simple way to replace legacy analog products with new IP devices over existing coax. Applications:
- Retrofit digital IP cameras in an analog CCTV installation.
- Works with IP Megapixel and non Megapixel cameras.
- Extend Network link distance in an industrial environment over 610m.
- Upgrade deployed CCTV Coax to a digital network in Retail, Casinos, Airports, Schools, Hospitals, etc.
Interfaces/Ports
Media & Performance
Media Type Supported:
- Twisted Pair
- Optical Fiber
Maximum Distance Supported:
1640.42 ft
Network & Communication
Ethernet Technology:
Fast Ethernet
Network Technology:
10/100Base-TX
Power Description
Power Source:
PoE+
Physical Characteristics
Height:
1.1"
Width:
2.3"
Depth:
2.6"
Weight (Approximate):
3.52 oz
Miscellaneous
Country of Origin:
United States
NDAA Compliant:
Yes
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN:
0782239954186, 4892929368875
UPC:
782239954186
EAN:
0782239954186, 4892929368875
UNSPSC:
43201553
