Altronix EBRIDGE1PCR Data Networking

Part Number: EBRIDGE1PCR
Model: eBridge
to get Free Ground Shipping on your order.
Add to My Shopping List Add to Compare
$216.11

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Total Number of Ports
2
Network (RJ-45)
Yes
DVI
No
USB
No

Product Description:

  Altronix IP and PoE over Coax Receiver - Network (RJ-45) - 1x PoE (RJ-45) Ports - 10/100Base-TX - Desktop
Explore all Altronix eBridge Data Networkings
Add to Quote
Altronix EBRIDGE1PCR Data Networking
Altronix EBRIDGE1PCR Data Networking
Altronix EBRIDGE1PCR Data Networking Altronix EBRIDGE1PCR Data Networking
Full specifications (PDF)

Altronix eBridge Data Networking Model Overview

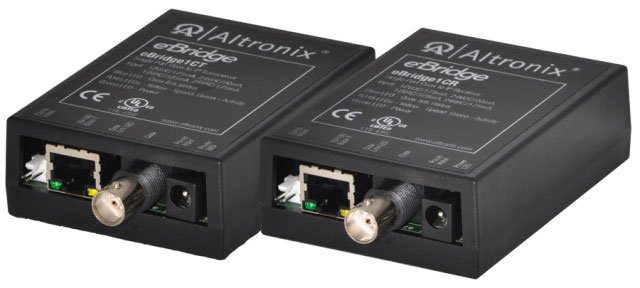

The Altronix Bridge1CRT - IP over Coax Kit is a game-changing solution for upgrading your CCTV system from analog to IP cameras without the hassle of installing new network cabling. This innovative kit allows for seamless data transmission over existing coaxial cables, extending the connection distance up to 1,500 feet while simultaneously transmitting composite video signals and Ethernet data. Designed for quick and easy installation, it supports a variety of cameras including Megapixel and HD formats, making it an ideal choice for retail, casinos, airports, schools, and more.

Key Features:
  • Upgrade Legacy Systems: Retrofit digital IP cameras with ease in an existing analog installation.
  • Extended Range: Achieves distances up to 1,500 ft without repeaters.
  • Simultaneous Transmission: Supports composite video and Ethernet data simultaneously.
  • Wide Compatibility: Works with HD720, HD1080, and VGA (SD) cameras.

Specifications:
  • Input Power: 12VDC to 24VDC Class 2 power supply or 16VAC to 24VAC Class 2 transformer.
  • Power Consumption: 12VDC/275mA, 24VDC/110mA, 16VAC/375mA, 24VAC/200mA.
  • Ethernet Connectivity: RJ45, auto-crossover, 4-pair Cat-5 or higher, speed: 10/100BaseT.
  • Coax Connectivity: BNC, RG-59/U or similar, up to 1,500 ft distance.
  • Operating Temperature: 14°F to 122°F (-10°C to +50°C).
  • Weight: Product - 4 oz. (0.11 kg), Shipping - 7 oz. (0.17 kg).
Altronix EBRIDGE1PCR Data Networking Overview

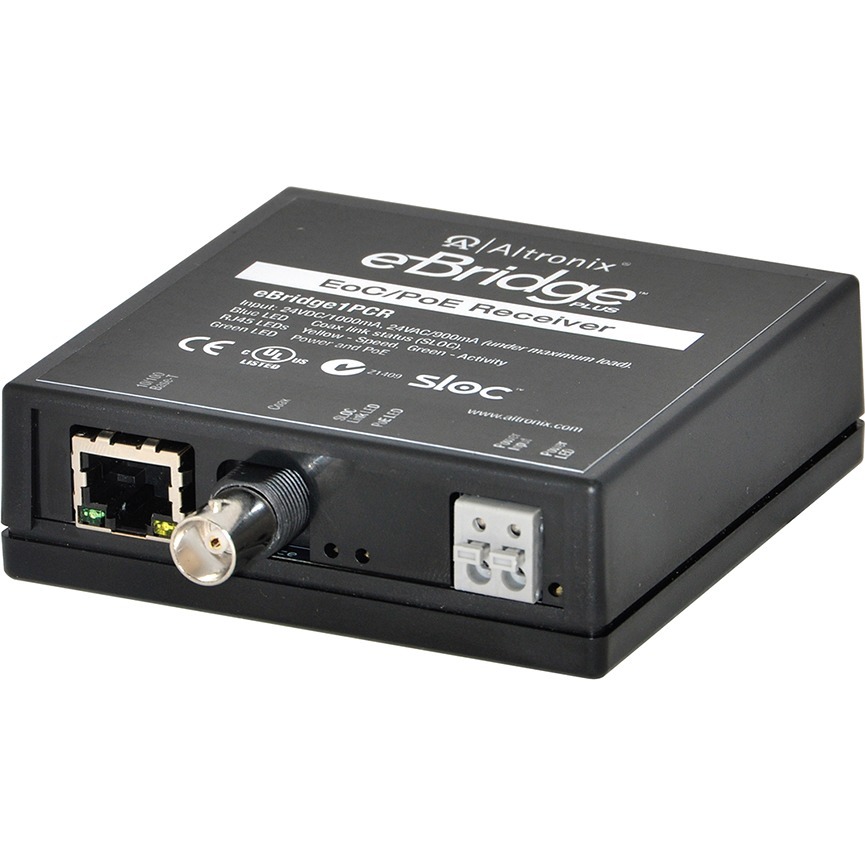

The eBridge1PCR is CAT5 to Coax cable Ethernet Receiver that deliver data and power over the coax cable in a PoE compliant format. It sends power over the coax to the eBridge1PCT transmitter under PoE protocol. The eBridge1PCR will not deliver power to non-compliant devices, thus avoiding damage to improperly connected non-PoE cameras. This plug and play unit facilitates system upgrades from analog to IP cameras/devices utilizing existing legacy Coax and eliminating the costs and labor associated with installing new network cabling. In addition, data transmission and power over the Coax is possible up to 1500 ft. in comparison to 100m (328 ft.) Ethernet maximum distance. A maximum range from head end to the PoE camera/device is 610m (2000 ft.), taking into consideration that up to 100m (328 ft.) of structured cable may be deployed at each end.

Full specifications (PDF)
Interfaces/Ports
Total Number of Ports:
2
Network (RJ-45):
Yes
DVI:
No
USB:
No
Parallel Port:
No
Digital Audio:
No
Digital Audio/Video:
No
Management Port:
No
Number of PoE (RJ-45) Ports:
1
Number of BNC Ports:
1
Media & Performance
Media Type Supported:
  • Twisted Pair
  • Coaxial
Maximum Distance Supported:
0.46 km
Network & Communication
Ethernet Technology:
Fast Ethernet
Network Technology:
10/100Base-TX
Power Description
Input Voltage:
24 V DC
Physical Characteristics
Form Factor:
Desktop
Height:
1"
Width:
3.5"
Depth:
3.8"
Weight (Approximate):
4.40 oz
Miscellaneous
Certifications & Standards:
  • UL listed for Information Technology Equipment (UL 60950-1)
  • CUL Listed for Information Technology Equipment (UL 60950-1)
  • CE Approved
  • C-TICK Approved (Z1409)
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Country of Origin:
United States
NDAA Compliant:
Yes
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN: 0782239949472
UPC: 782239949472
EAN: 0782239949472
UNSPSC: 43201553
