Full specifications (PDF)
Network (RJ-45):
Yes
Altronix eBridge Data Networking Model Overview
The Altronix eBridge ethernet adapters transmit IP video and data more than 2000 feet without repeaters over existing coaxial cable, with the highest signal integrity and cost efficiency. The eBridge legacy coax infrastructure is easily upgraded with advanced IP camera with composite video and data simultaneously video and data simultaneously or multiple IP cameras with an Ethernet switch.

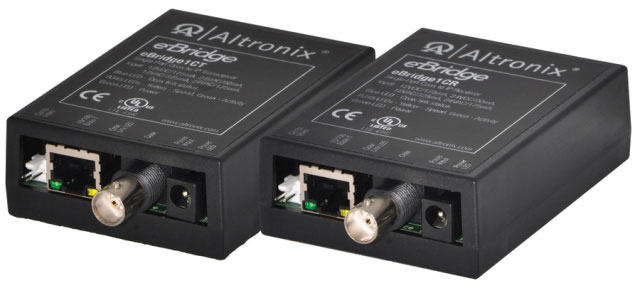

Altronix EBRIDGE1CRT Data Networking Overview
The eBridge1CRT - IP over Coax transceiver and receiver kit is designed to enable fast 10/100Base-T Ethernet digital communication over coax cable. These plug and play units facilitate system upgrades from analog to IP cameras/devices utilizing existing legacy Coax and eliminating the costs and labor associated with installing new network cabling. In addition data transmission is extended up to 610m (over five times the 100m Ethernet maximum length), eliminating the need for repeaters. eBridge units will transmit Composite Video Signal with Ethernet data simultaneously.
Interfaces/Ports
Physical Characteristics
Transmitter Weight (Approximate):
4 oz
Miscellaneous
Package Contents:
- Network Extender
- Composite Video Cables (included)
- One (1) x eBridge1CR: IP over Coax Receiver
- One (1) x eBridge1CT: IP over Coax Transceiver
Additional Information:
Applications:
sloc™ Compliant:
- Retrofit digital IP cameras in an analog CCTV installation.
- Works with Megapixel, HD720, HD1080 and VGA (SD) cameras.
- Extend Network link distance in an industrial environment.
- Upgrade deployed CCTV Coax to a digital network in Retail, Hospitality, Arenas, Casinos, Airports, Schools, Hospitals, Transportation, etc.
- Enables simultaneous transmission of composite and digital IP video.
sloc™ Compliant:
- Incorporates *sloc™ (Security Link over Coax) technology.
- 12VDC to 24VDC Class 2 power supply (polarity not observed) or 16VAC to 24VAC Class 2 plug-in transformer.
- 12VDC/275mA, 24VDC/110mA,
- 16VAC/375mA, 24VAC/200mA.
- Connectivity: RJ45, auto-crossover.
- Wire type: 4-pair Cat-5 or higher structured cable.
- Distance: up to 100m.
- Speed: 10/100BaseT, half/full duplex, auto negotiation.
- Throughput is rated to pass 25mbps of data at distances up to 457m with proper headend equipment which supports Megapixel, HD720, HD1080.
- Distance: up to 457m.
- Connectivity: BNC, RG-59/U or similar.
- Blue LED - Coax link connection.
- Yellow and Green LED (RJ45) IP Link status, 10/100Base-T/active.
- Green LED - Power.
- Operating Temperature:
- 14° F to 122° F (-10° C to +50° C).
- Storage Temperature: -4° to 158° F (-20° to 70° C).
- Relative humidity: 85%, +/- 5%, non-condensing.
- Operating Altitude: -1000 to 6,561.679 ft. (-304.8 to 2000m).
- BTU/Hr.:
- - VDC: 1.69 - 4.46 BTU/Hr.
- BTU/Hr.:
- -VAC: 2.46 - 3.07 BTU/Hr.
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN:
0782239948376
UPC:
782239948376
EAN:
0782239948376
UNSPSC:
43222608
