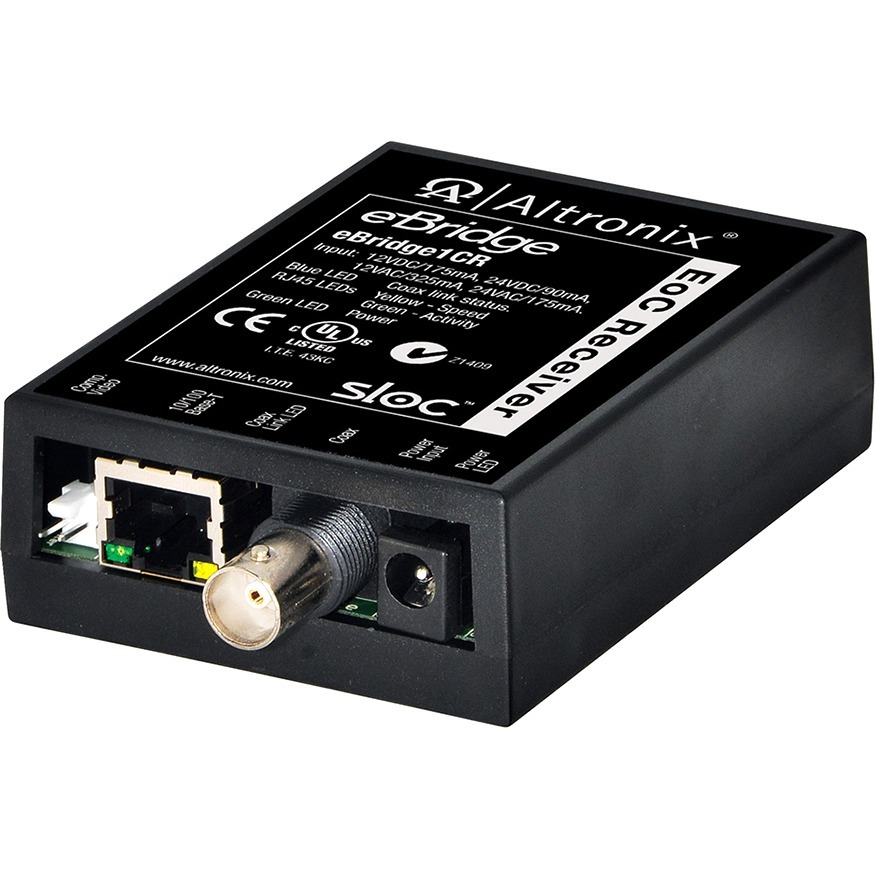

Altronix EBRIDGE1CR Data Networking

Part Number: EBRIDGE1CR
Model: eBridge
to get Free Ground Shipping on your order.
Add to My Shopping List Add to Compare
$168.71

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Total Number of Ports
2
Network (RJ-45)
Yes
DVI
No
USB
No

Product Description:

  Altronix eBridge1CR - IP over Coax Receiver - 1 x Network (RJ-45) - 10/100Base-TX - Desktop
Explore all Altronix eBridge Data Networkings
Add to Quote
Altronix EBRIDGE1CR Data Networking
Altronix EBRIDGE1CR Data Networking
Altronix EBRIDGE1CR Data Networking Altronix EBRIDGE1CR Data Networking
Full specifications (PDF)

Altronix eBridge Data Networking Model Overview

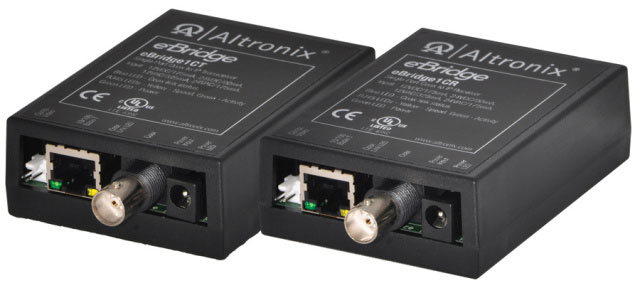

The Altronix Bridge1CRT - IP over Coax Kit is a game-changing solution for upgrading your CCTV system from analog to IP cameras without the hassle of installing new network cabling. This innovative kit allows for seamless data transmission over existing coaxial cables, extending the connection distance up to 1,500 feet while simultaneously transmitting composite video signals and Ethernet data. Designed for quick and easy installation, it supports a variety of cameras including Megapixel and HD formats, making it an ideal choice for retail, casinos, airports, schools, and more.

Key Features:
  • Upgrade Legacy Systems: Retrofit digital IP cameras with ease in an existing analog installation.
  • Extended Range: Achieves distances up to 1,500 ft without repeaters.
  • Simultaneous Transmission: Supports composite video and Ethernet data simultaneously.
  • Wide Compatibility: Works with HD720, HD1080, and VGA (SD) cameras.

Specifications:
  • Input Power: 12VDC to 24VDC Class 2 power supply or 16VAC to 24VAC Class 2 transformer.
  • Power Consumption: 12VDC/275mA, 24VDC/110mA, 16VAC/375mA, 24VAC/200mA.
  • Ethernet Connectivity: RJ45, auto-crossover, 4-pair Cat-5 or higher, speed: 10/100BaseT.
  • Coax Connectivity: BNC, RG-59/U or similar, up to 1,500 ft distance.
  • Operating Temperature: 14°F to 122°F (-10°C to +50°C).
  • Weight: Product - 4 oz. (0.11 kg), Shipping - 7 oz. (0.17 kg).
Altronix EBRIDGE1CR Data Networking Overview
The eBridge1CR is a CAT5 to Coax cable Ethernet adapter. The receiver enables fast 10/100Base-T Ethernet digital communication to be received over Coax cable. This plug and play unit facilitates system upgrades from analog to IP cameras/devices utilizing existing legacy Coax and eliminating the costs and labor associated with installing new network cabling. In addition data transmission over the Coax can be extended to 1500' (five times the 100m/328ft Ethernet maximum length), eliminating the need for repeaters. At the same time the unit can combine Composite Video Signal with the Ethernet data enabling connection to an analog input on a monitor or matrix switch. The eBridge1CR must be used with and eBridge1CT or a compatible Hybrid camera/device with the "sloc" technology.
Full specifications (PDF)
Interfaces/Ports
Total Number of Ports:
2
Network (RJ-45):
Yes
DVI:
No
USB:
No
Parallel Port:
No
Digital Audio:
No
Digital Audio/Video:
No
Management Port:
No
Number of Network (RJ-45) Ports:
1
Number of BNC Ports:
1
Media & Performance
Media Type Supported:
  • Twisted Pair
  • Coaxial
Maximum Distance Supported:
0.46 km
Network & Communication
Ethernet Technology:
Fast Ethernet
Network Technology:
10/100Base-TX
Physical Characteristics
Form Factor:
Desktop
Height:
1"
Width:
2.5"
Depth:
3.8"
Weight (Approximate):
3.36 oz
Miscellaneous
Package Contents:
  • eBridge1CR - IP over Coax Receiver
  • Composite Video Cables
  • 2 x Power Connectors
Certifications & Standards:
  • UL listed for Information Technology Equipment (UL 60950-1)
  • CUL Listed for Information Technology Equipment (UL 60950-1)
  • CE Approved
  • C-TICK Approved (Z1409)
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Country of Origin:
United States
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN: 0782239948420
UPC: 782239948420
EAN: 0782239948420
UNSPSC: 43201553
