Altronix EBRIDGE16CR Data Networking

Part Number: EBRIDGE16CR
Model: eBridge
to get Free Ground Shipping on your order.
Add to My Shopping List Add to Compare
$3,654.54

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Connectivity Technology
Wired
Number of Input Devices Supported
16
Maximum Operating Distance
4921.26 ft
Network (RJ-45)
Yes

Product Description:

  16 Channel eBridge IP Over Coax Adapter
Explore all Altronix eBridge Data Networkings
Add to Quote
Altronix EBRIDGE16CR Data Networking
Altronix EBRIDGE16CR Data Networking
Altronix EBRIDGE16CR Data Networking Altronix EBRIDGE16CR Data Networking
Full specifications (PDF)

Altronix eBridge Data Networking Model Overview

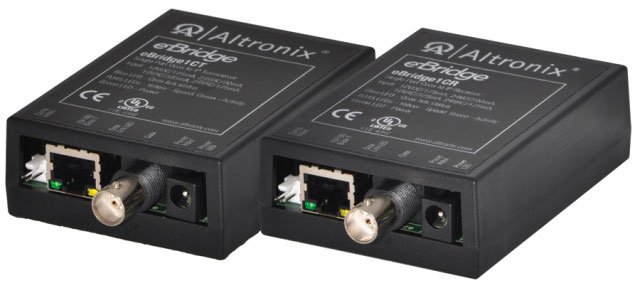

The Altronix Bridge1CRT - IP over Coax Kit is a game-changing solution for upgrading your CCTV system from analog to IP cameras without the hassle of installing new network cabling. This innovative kit allows for seamless data transmission over existing coaxial cables, extending the connection distance up to 1,500 feet while simultaneously transmitting composite video signals and Ethernet data. Designed for quick and easy installation, it supports a variety of cameras including Megapixel and HD formats, making it an ideal choice for retail, casinos, airports, schools, and more.

Key Features:
  • Upgrade Legacy Systems: Retrofit digital IP cameras with ease in an existing analog installation.
  • Extended Range: Achieves distances up to 1,500 ft without repeaters.
  • Simultaneous Transmission: Supports composite video and Ethernet data simultaneously.
  • Wide Compatibility: Works with HD720, HD1080, and VGA (SD) cameras.

Specifications:
  • Input Power: 12VDC to 24VDC Class 2 power supply or 16VAC to 24VAC Class 2 transformer.
  • Power Consumption: 12VDC/275mA, 24VDC/110mA, 16VAC/375mA, 24VAC/200mA.
  • Ethernet Connectivity: RJ45, auto-crossover, 4-pair Cat-5 or higher, speed: 10/100BaseT.
  • Coax Connectivity: BNC, RG-59/U or similar, up to 1,500 ft distance.
  • Operating Temperature: 14°F to 122°F (-10°C to +50°C).
  • Weight: Product - 4 oz. (0.11 kg), Shipping - 7 oz. (0.17 kg).
Altronix EBRIDGE16CR Data Networking Overview
16-Port ethernet over coax receiver. Supports IP video/data over existing coax cable up to 1,500 ft.
Full specifications (PDF)
Technical Information
Connectivity Technology:
Wired
Number of Input Devices Supported:
16
Maximum Operating Distance:
4921.26 ft
Interfaces/Ports
Network (RJ-45):
Yes
Number of Network (RJ-45) Ports:
16
Media & Performance
Media Type Supported:
  • Twisted Pair
  • Coaxial
Physical Characteristics
Receiver Height:
5.50"
Receiver Width:
12.50"
Receiver Depth:
20.25"
Receiver Weight (Approximate):
7.47 lb
Miscellaneous
Country of Origin:
United States
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN: 0782239948741
UPC: 782239948741
EAN: 0782239948741
UNSPSC: 43222619
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Altronix EBRIDGE16CR Data Networking is also known as ALT-EBRIDGE16CR
