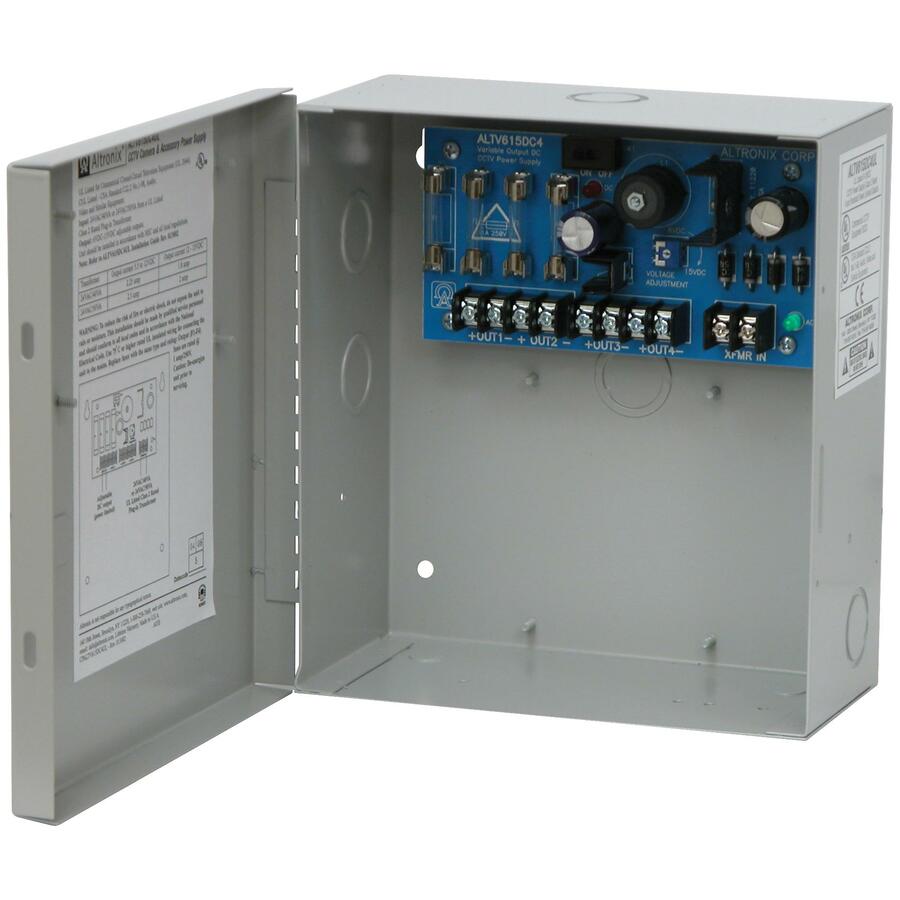

The Altronix ALTV615DC4UL CCTV Power Supply is the ideal solution for powering your security cameras and video accessories. This robust unit features four individual fused outputs, delivering a reliable range of 5.5 to 15VDC with a continuous supply current of up to 2.5 amps. Designed for safety and efficiency, the ALTV615DC4UL ensures camera synchronization and comes with easy installation instructions, making it a perfect choice for both professional installers and DIY enthusiasts. With its durable enclosure and UL listing for U.S. and Canada, you can trust its quality for your surveillance needs.
Key features:
Four individual fused outputs for expansive connectivity.
Adjustable output voltage from 5.5VDC to 15VDC.
Total continuous supply current of 2.5 amps.
LED indicators for AC input and DC output status.
Spare fuses included for added convenience.
Compact enclosure dimensions: 8.5"H x 7.5"W x 3.5"D.
Specifications:
Input: 24VAC 40VA or 50VA, UL Listed plug-in transformer.
Output Voltage: 5.5VDC to 15VDC, field adjustable.
Output Specifications:
24VAC, 40VA: 2.25 amp (12-15VDC), 1.8 amp (5.5 to 12VDC).
24VAC, 50VA: 2.5 amp (12-15VDC), 2 amp (5.5 to 12VDC).
Fuses: Rated at 1.0 amp / 250VAC.
Protection: Power ON/OFF switch and spare fuses included.
Weight: Lightweight construction for easy installation.
Compliance: Conforms to all local codes and standards.
Altronix ALTV615DC4UL Power Device Overview
Model ALTV615DC4UL provides 6-15VDC distributed via four (4) fuse protected outputs.
The Altronix ALTV615DC4UL Power Device is also known as
ALT-ALTV615DC4UL
