Protection Type:
Surge
Altronix ALTV248ULHI3 Accessory
Part Number:
ALTV248ULHI3
Model:
ALTV2416
Altronix ALTV2416 Accessory Model Overview
The Altronix ALTV2416 Power Supply provides 24VAC or 28VAC distributed via sixteen (16) fuse or PTC protected outputs for powering CCTV Cameras, heaters and other video accessories. It has a supply current of 24VAC @ 8 amp (200VA) or 28VAC @ 7 amp (200VA). Main fuse is rated @ 10 amp/250V. It has a power ON/OFF switch. ALTV2416 Power Supply's ease of installation saves time and eliminates costly labor.
Altronix ALTV248ULHI3 Accessory Overview

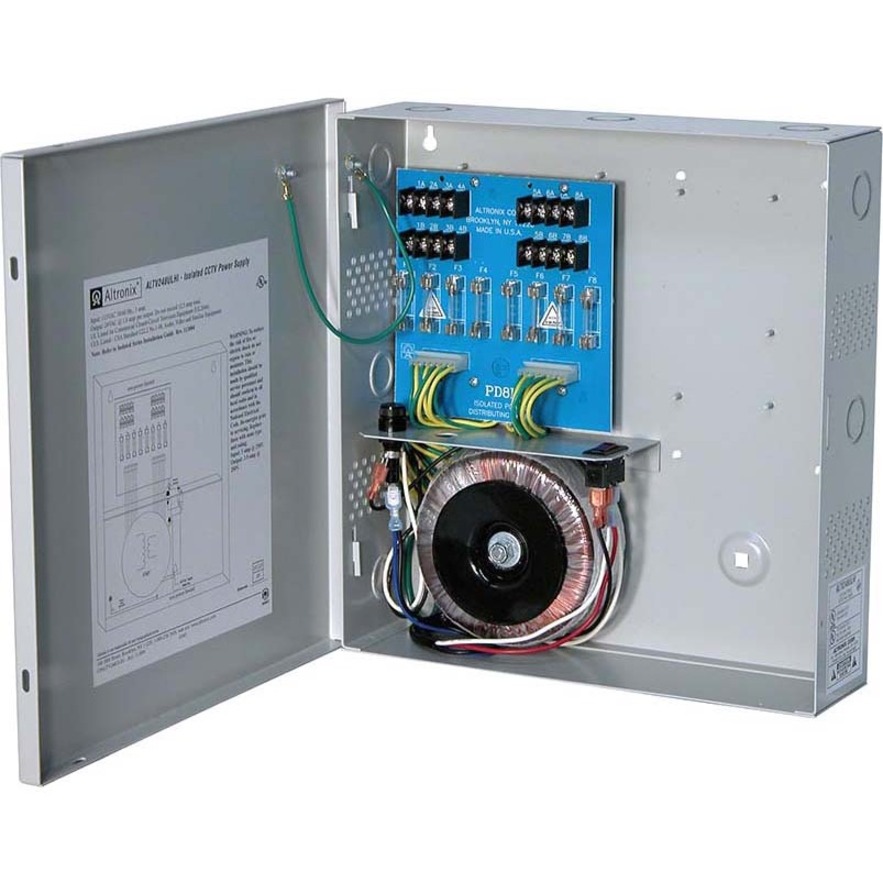

ALTV248ULHI3 Isolated CCTV Power Supply provides 24VAC distributed via eight (8) isolated fuse protected power limited outputs for powering CCTV Cameras, heaters and other video accessories.
Technical Information
Power Description
Input Voltage Type:
AC
Input Voltage:
110 V AC
Output Voltage:
24 V AC
Output Voltage Detail:
24 V AC @ 12.5 A
Input Current:
3 A @ 110V
Output Current:
12.50 A
Output Power:
300 W
Physical Characteristics
Height:
13.5"
Width:
13"
Depth:
3.3"
Weight (Approximate):
12.40 lb
Miscellaneous
Package Contents:
- 8 Fused Isolated Outputs CCTV Power Supply. 24VAC @ 12.5A. 3-wire Line Cord
- Spare Fuses
Certifications & Standards:
- UL (UL2044)
- CUL (CSA Standard C22.2 No.1-98)
- CE
NDAA Compliant:
Yes
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN:
0782239942084
UPC:
782239942084
EAN:
0782239942084
UNSPSC:
39121004
Get help from a Barcoding Expert!
The Altronix ALTV248ULHI3 Accessory is also known as
ALT-ALTV248ULHI3
