Protection Type:
Surge
Altronix ALTV248600ULCB3 Accessory
Part Number:
ALTV248600ULCB3
Model:
ALTV2416
Altronix ALTV2416 Accessory Model Overview
The Altronix ALTV2416 Power Supply provides 24VAC or 28VAC distributed via sixteen (16) fuse or PTC protected outputs for powering CCTV Cameras, heaters and other video accessories. It has a supply current of 24VAC @ 8 amp (200VA) or 28VAC @ 7 amp (200VA). Main fuse is rated @ 10 amp/250V. It has a power ON/OFF switch. ALTV2416 Power Supply's ease of installation saves time and eliminates costly labor.

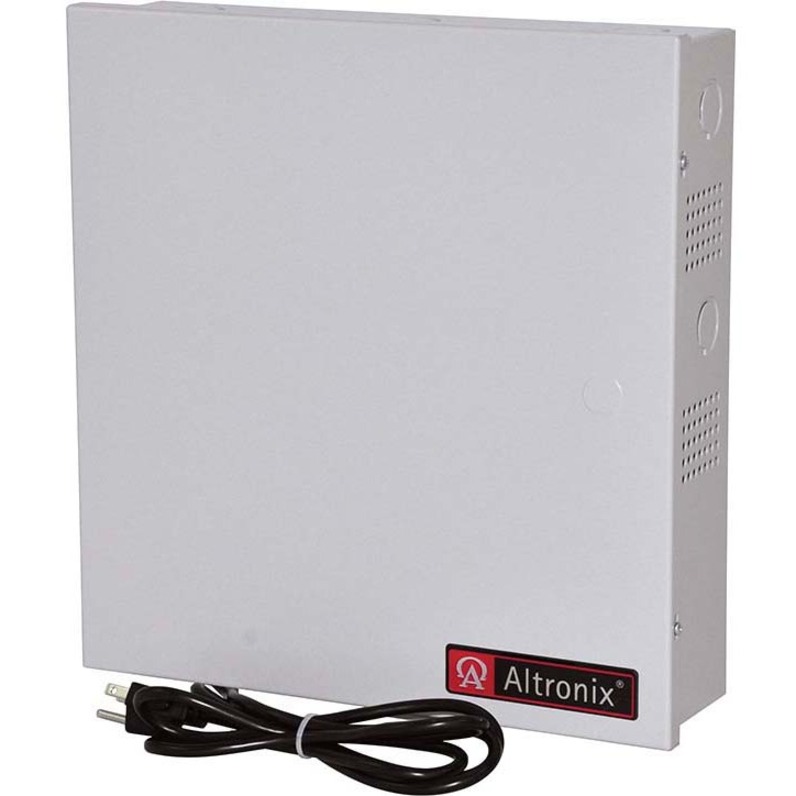

Altronix ALTV248600ULCB3 Accessory Overview
ALTV248600ULCB3 provides 24VAC or 28VAC distributed via Eight (8) Class 2 Rated PTC protected power limited outputs for powering CCTV Cameras, heaters and other video accessories. Factory installed 3-wire line cord.
Technical Information
Power Description
Input Voltage Type:
AC
Input Voltage:
110 V AC
Output Voltage:
- 24 V AC
- 28 V AC
Output Voltage Detail:
- 24 V AC @ 25 A
- 28 V AC @ 20 A
Input Current:
5.4 A @ 110V
Output Current:
- 25 A
- 20 A
Output Power:
- 560 W
- 600 W
Controls/Indicators
Status Indicators:
AC Power LED
Interfaces/Ports
Plug/Connector:
On/Off Switch
Physical Characteristics
Form Factor:
Wall Mount
Height:
13.5"
Width:
13"
Depth:
3.3"
Weight (Approximate):
22.20 lb
Miscellaneous
Certifications & Standards:
- UL (UL2044)
- CUL (CSA Standard C22.2 No.1-98)
- CE
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN:
0782239941513
UPC:
782239941513
EAN:
0782239941513
UNSPSC:
39121004
