Altronix ALTV248175ULCB3 Accessory

Part Number: ALTV248175ULCB3
Model: ALTV2416
to get Free Ground Shipping on your order.
Add to My Shopping List Add to Compare
$282.66

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Input Voltage Type
AC
Input Voltage
110 V AC
Output Voltage
24 V AC28 V AC
Output Voltage Detail
24 V AC @ 7 A28 V AC @ 6.25 A

Product Description:

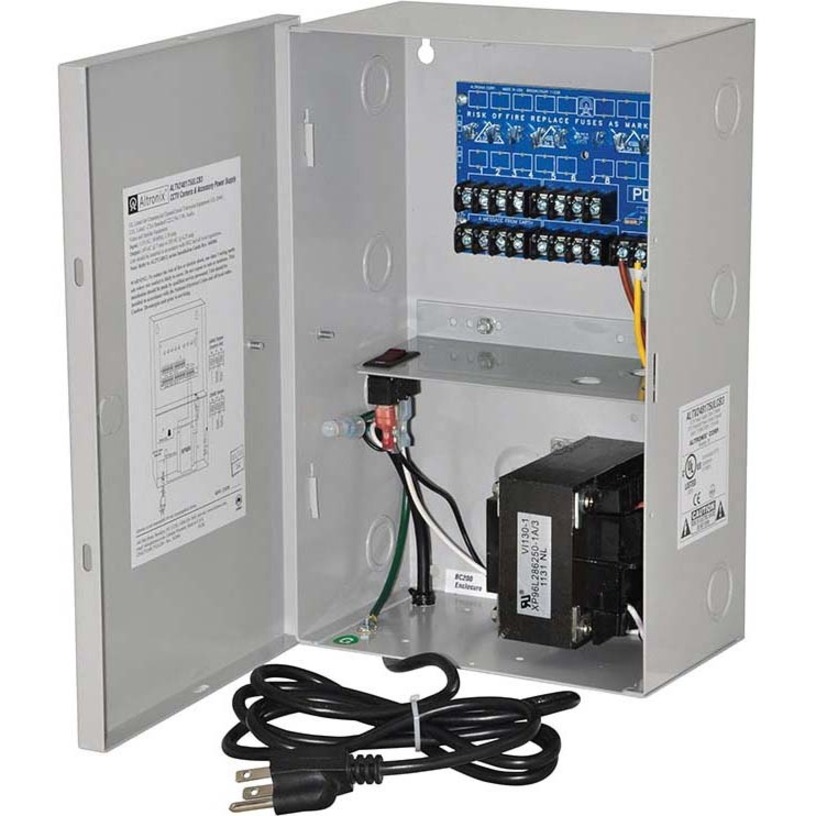

  Altronix ALTV248175ULCB3 Proprietary Power Supply - Wall Mount - 110 V AC Input
Explore all Altronix ALTV2416 Accessories
Add to Quote
Altronix ALTV248175ULCB3 Accessory
Altronix ALTV248175ULCB3 Accessory
Altronix ALTV248175ULCB3 Accessory
Altronix ALTV248175ULCB3 Accessory Altronix ALTV248175ULCB3 Accessory Altronix ALTV248175ULCB3 Accessory

Altronix ALTV2416 Accessory Model Overview

The Altronix ALTV2416 Power Supply provides 24VAC or 28VAC distributed via sixteen (16) fuse or PTC protected outputs for powering CCTV Cameras, heaters and other video accessories. It has a supply current of 24VAC @ 8 amp (200VA) or 28VAC @ 7 amp (200VA). Main fuse is rated @ 10 amp/250V. It has a power ON/OFF switch. ALTV2416 Power Supply's ease of installation saves time and eliminates costly labor.
Altronix ALTV248175ULCB3 Accessory Overview
ALTV248175ULCB3 provides 24VAC or 28VAC distributed via Eight (8) Class 2 Rated PTC protected power limited outputs for powering CCTV Cameras, heaters and other video accessories. Factory installed 3-Wire line cord.
Power Description
Input Voltage Type:
AC
Input Voltage:
110 V AC
Output Voltage:
  • 24 V AC
  • 28 V AC
Output Voltage Detail:
  • 24 V AC @ 7 A
  • 28 V AC @ 6.25 A
Input Current:
1.73 A @ 110V
Output Current:
  • 7 A
  • 6.25 A
Controls/Indicators
Status Indicators:
AC Power LED
Interfaces/Ports
Plug/Connector:
On/Off Switch
Physical Characteristics
Form Factor:
Wall Mount
Height:
12.3"
Width:
7.3"
Depth:
4.5"
Weight (Approximate):
8.50 lb
Miscellaneous
Certifications & Standards:
  • UL (UL2044)
  • cUL CSA Standard C22.2 No.1-98
  • CE
NDAA Compliant:
Yes
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN: 0782239941315
UPC: 782239941315
EAN: 0782239941315
UNSPSC: 39121004
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Altronix ALTV248175ULCB3 Accessory is also known as ALT-ALTV248175ULCB3
