Full specifications (PDF)
Protection Type:
Surge
Altronix ALTV248175UL Power Device
Part Number:
ALTV248175UL
Model:
ALTV248175UL
Altronix ALTV248175UL Power Device Model Overview
Upgrade your security setup with the Altronix ALTV248UL Series CCTV Power Supplies, designed for reliable and efficient power distribution to CCTV cameras and video accessories. With multiple models offering various output capacities—ranging from 3.5 amp to 25 amp—these power supplies ensure that your security system operates without interruption. Each model features eight outputs, either fuse or PTC protected, guaranteeing the safety and longevity of your devices. Ideal for both residential and commercial use, these power supplies are UL listed, ensuring compliance with the highest safety standards.
Key Features
- Multiple Voltage Options: 24VAC or 28VAC depending on the model.
- Output Capacity: Available from 3.5 amp to 25 amp for versatile applications.
- Eight Outputs: Each model comes with eight fuse or PTC protected outputs.
- Ease of Installation: Designed to save time and reduce labor costs.
- LED Indicator: Visual AC power indication for quick status checks.
Specifications
- Models: ALTV248UL, ALTV248175UL, ALTV248300UL, ALTV248600UL, and their PTC protected variants.
- Input Voltage: 115VAC, 50/60Hz.
- Protection: UL Listed for commercial CCTV equipment.
- Dimensions: Varies by model—check specific model for details.
- Surge Suppression: Built-in for added safety.
Altronix ALTV248175UL Power Device Overview

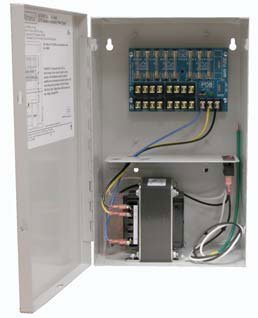

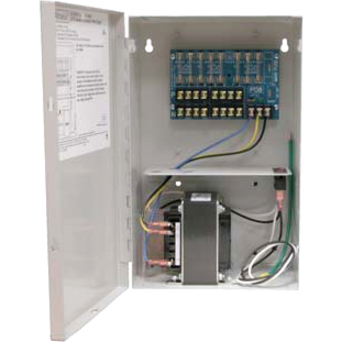

These Altronix AC Wall Mount CCTV Power Supplies provide 24VAC or 28VAC distributed via eight (8) fuse or Class 2 Rated PTC protected power limited outputs for powering CCTV Cameras, heaters and other video accessories.
Technical Information
Power Description
Input Voltage Type:
AC
Input Voltage:
110 V AC
Output Voltage:
- 24 V AC
- 28 V AC
Output Voltage Detail:
- 24 V AC @ 7 A
- 28 V AC @ 6.25 A
Input Current:
1.73 A @ 110V
Output Current:
- 7 A
- 6.25 A
Physical Characteristics
Form Factor:
Wall Mount
Height:
12.3"
Width:
7.3"
Depth:
4.5"
Weight (Approximate):
10.90 lb
Miscellaneous
Compatibility:
- Heaters
- CCTV Cameras
- Video Accessories
NDAA Compliant:
Yes
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN:
0782239938070
UPC:
782239938070
EAN:
0782239938070
UNSPSC:
39121004
