Protection Type:
Surge
Altronix ALTV244UL Power Device
Part Number:
ALTV244UL
Model:
ALTV244UL

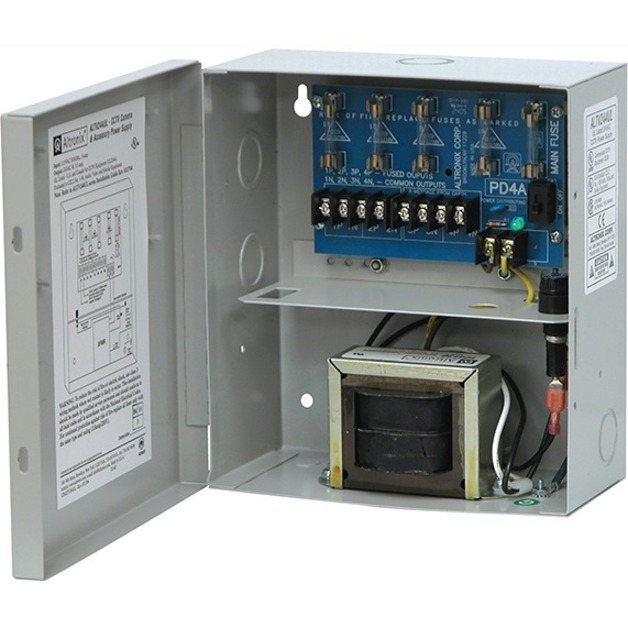

Altronix ALTV244UL Power Device Model Overview
CCTV power supply units are essential for maintaining reliable video surveillance, and the Altronix ALTV244UL is expertly designed for this purpose. Providing either 24VAC or 28VAC power, this wall-mounted unit features four outputs—each protected by fuses or Class 2 Rated PTCs—making it suitable for CCTV cameras, heaters, and other video accessories. Its ease of installation significantly reduces time and labor costs, while the integrated surge suppression ensures your devices remain protected. Ideal for commercial CCTV setups, the Altronix ALTV244UL guarantees consistent power and camera synchronization, giving you peace of mind in your surveillance system.
Key features:
Specifications:
Key features:
- Four fused protected outputs for enhanced reliability.
- Class 2 Rated PTC protected outputs to comply with safety standards.
- Surge suppression to protect your equipment from power spikes.
- Power ON/OFF switch for easy operation.
- Spare fuses included, ensuring quick replacement.
- Maintains camera synchronization for uninterrupted service.
Specifications:
- Input: 115VAC, 50/60Hz, 0.9 amp.
- Output Ratings:
- 24VAC @ 3.5 amp (85VA) or
- 28VAC @ 3 amp (85VA) supply current.
- Fuses rated @ 3.5 amp.
- PTCs rated @ 2.5 amp.
- Main fuse: Rated @ 5 amp/250V.
- Dimensions: 8.5"H x 7.5"W x 3.5"D.
- Agency Approvals:
- UL Listed for Commercial CCTV Equipment.
- CUL Listed CSA Standard C22.2 No. 1-98.
- CE European Conformity.
Altronix ALTV244UL Power Device Overview
These Altronix AC Wall Mount CCTV Power Supplies provide 24VAC or 28VAC distributed via four (4) fuse or Class 2 Rated PTC protected power limited outputs for powering CCTV Cameras, heaters and other video accessories.
Technical Information
Power Description
Input Voltage Type:
AC
Input Voltage:
110 V AC
Output Voltage:
- 24 V AC
- 28 V AC
Output Voltage Detail:
- 24 V AC @ 3.5 A
- 28 V AC @ 3 A
Input Current:
900 mA @ 110V
Output Current:
- 3.50 A
- 3 A
Interfaces/Ports
Plug/Connector:
On/Off Switch
Physical Characteristics
Form Factor:
Wall Mount
Height:
8.5"
Width:
7.5"
Depth:
3.5"
Weight (Approximate):
6.40 lb
Miscellaneous
Compatibility:
- Heaters
- CCTV Cameras
- Video Accessories
Country of Origin:
United States
NDAA Compliant:
Yes
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN:
0782239930913, 4703876699403
UPC:
782239930913
EAN:
0782239930913, 4703876699403
UNSPSC:
39121004
