Protection Type:
- Fuse
- Surge
Altronix ALTV244300 Accessory
Part Number:
ALTV244300
Model:
ALTV2416
Altronix ALTV2416 Accessory Model Overview

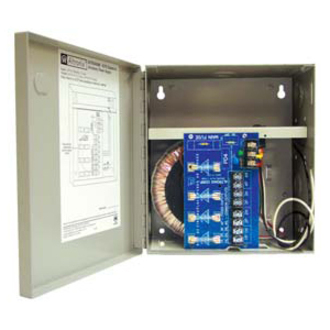

The Altronix ALTV2416 Power Supply provides 24VAC or 28VAC distributed via sixteen (16) fuse or PTC protected outputs for powering CCTV Cameras, heaters and other video accessories. It has a supply current of 24VAC @ 8 amp (200VA) or 28VAC @ 7 amp (200VA). Main fuse is rated @ 10 amp/250V. It has a power ON/OFF switch. ALTV2416 Power Supply's ease of installation saves time and eliminates costly labor.
Technical Information
Power Description
Input Voltage Type:
AC
Input Voltage:
110 V AC
Output Voltage:
- 24 V AC
- 28 V AC
Output Voltage Detail:
- 24 V AC @ 12.5 A
- 28 V AC @ 10 A
Input Current:
2.7 A @ 110V
Output Current:
- 12.50 A
- 10 A
Interfaces/Ports
Plug/Connector:
Voltage Selector Switch
Physical Characteristics
Form Factor:
Wall Mount
Height:
8.5"
Width:
7.5"
Depth:
3.5"
Miscellaneous
Additional Information:
- 24/28VAC Selectable Output
- 4 x 24/28VAC Outputs
Compatibility:
CCTV Camera
NDAA Compliant:
Yes
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN:
0782239930883
UPC:
782239930883
EAN:
0782239930883
UNSPSC:
39121004
