Full specifications (PDF)
Protection Type:
- Surge
- Fuse

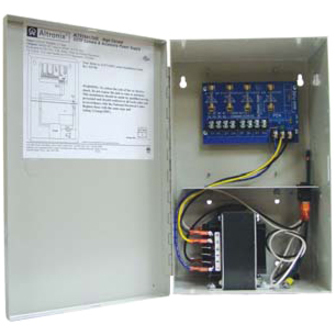

Altronix ALTV244 Power Device Model Overview
The Altronix ALTV244 Power Supply provides 24VAC or 28VAC distributed via four (4) fuse or PTC protected outputs for powering CCTV cameras, heaters and other video accessories. The supply current is 24VAC @ 4 amp (100VA) or 28VAC @ 3.5 amp (100VA). The main fuse is rated @ 5 amp/250V. It has a power ON/OFF switch, surge suppression and AC power LED.
Altronix ALTV244175UL Power Device Overview
These Altronix AC Wall Mount CCTV Power Supplies provide 24VAC or 28VAC distributed via four (4) fuse or Class 2 Rated PTC protected power limited outputs for powering CCTV Cameras, heaters and other video accessories.
Technical Information
Power Description
Input Voltage Type:
AC
Input Voltage:
110 V AC
Output Voltage:
- 24 V AC @ 7 A
- 28 V AC @ 6.25 A
Input Current:
2.7 A @ 110V
Physical Characteristics
Form Factor:
Wall Mount
Height:
12.3"
Width:
7.3"
Depth:
4.5"
Weight (Approximate):
10.80 lb
Miscellaneous
Package Contents:
- ALTV244175UL Proprietary Power Supply
- Spare fuses
Compatibility:
- CCTV Cameras
- Heaters
- Video Accessories
Environmentally Friendly:
Yes
NDAA Compliant:
Yes
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN:
0782239933358
UPC:
782239933358
EAN:
0782239933358
UNSPSC:
39121004
Get help from a Barcoding Expert!
The Altronix ALTV244175UL Power Device is also known as
ALT-ALTV244175UL
