Full specifications (PDF)
Input Voltage Type:
AC
Input Voltage:
115 V AC
Output Voltage:
- 24 V AC
- 28 V AC
Input Current:
900 mA @ 110V

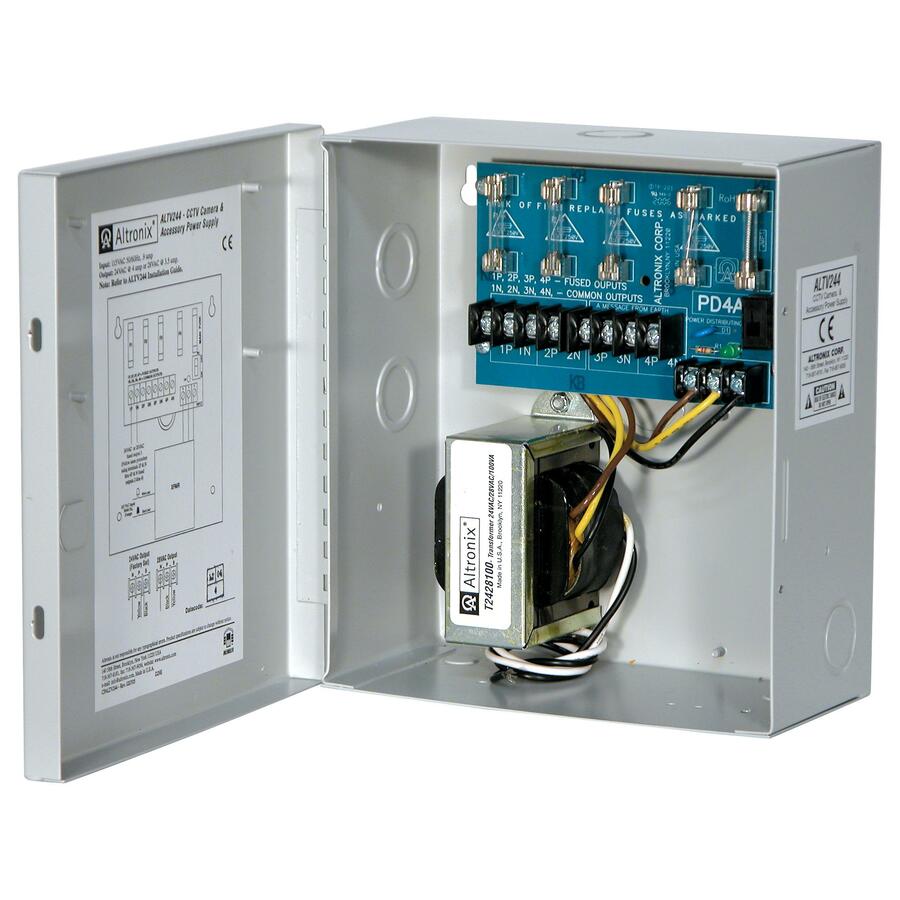

Altronix ALTV244 Power Device Model Overview
The Altronix ALTV244 Power Supply provides 24VAC or 28VAC distributed via four (4) fuse or PTC protected outputs for powering CCTV cameras, heaters and other video accessories. The supply current is 24VAC @ 4 amp (100VA) or 28VAC @ 3.5 amp (100VA). The main fuse is rated @ 5 amp/250V. It has a power ON/OFF switch, surge suppression and AC power LED.
Altronix ALTV244 Power Device Overview
Model ALTV244 provides 24VAC or 28VAC distributed via four (4) fuse protected outputs.
Power Description
Controls/Indicators
Status Indicators:
AC power LED indicator
Physical Characteristics
Height:
8.5"
Width:
7.5"
Depth:
3.5"
Weight (Approximate):
6.80 lb
Miscellaneous
Additional Information:
- Four (4) fuse protected outputs
- Output fuses are rated @ 3.5 amp
- Surge suppression
- Power ON/OFF switch
- Unit maintains camera synchronization
Compatibility:
Close Circuit TV cameras, heaters, and other video accessories
Certifications & Standards:
CE
Country of Origin:
United States
NDAA Compliant:
Yes
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN:
0782239930746
UPC:
782239930746
EAN:
0782239930746
UNSPSC:
39121004
Get help from a Barcoding Expert!
The Altronix ALTV244 Power Device is also known as
ALT-ALTV244
or ALTV244.
